Old 08-12-2011, 09:58 PM
  #6346
Senior Member

Kuro89's Avatar

Join Date: Jan 2011
Posts: 903
Received 88 Likes on 61 Posts
Default

Originally Posted by RAOK67
I am in the middle of the Cherokee overheating fix: flushed system, new thermostat, new rad, new elec fan. and now I notice that the a/c compressor comes on even when I have selector set to defrost!! and then elec fan kicks in constantly and engine runs too cool (just off bottom of gauge). I am a first time cherokee owner and this vehicle is making me nuts! even after all this work i've done, it still runs hot in city on hot days with a/c on ( it will get up to the red zone) I really like my jeep but its just not appreciating all the blood, sweat and tears ... and $$ I have put into it lol. thanks for any advice.
Putting the defrost on does turn on the compressor so it cycles in the cold and circulates the oil.
Kuro89 is offline
Old 08-12-2011, 11:49 PM
  #6347
Newbie

CHEROKEEFERS's Avatar

Join Date: Aug 2011
Location: Moreno Valley, CA
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Year: 1991
Model: Cherokee
Engine: Inline 6 4.0L
Default

I got a check engine light before it stop running, but it doesnt come in anymore. Me and a buddy tried the hearing check on the fuel pump and it sounds fine. We replaced the fuel filter just because it was about time for a replacement. We poured some fuel into the intake and still no progress. I'm going to replace the plugs next and see if that was the problems. Thanks for all the help
CHEROKEEFERS is offline
Old 08-12-2011, 11:52 PM
  #6348
CF Veteran

sycoglitch's Avatar

Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by CHEROKEEFERS
I got a check engine light before it stop running, but it doesnt come in anymore. Me and a buddy tried the hearing check on the fuel pump and it sounds fine. We replaced the fuel filter just because it was about time for a replacement. We poured some fuel into the intake and still no progress. I'm going to replace the plugs next and see if that was the problems. Thanks for all the help
You can check you IAC and the cps both I believe can cause a stall at idle
sycoglitch is offline
Old 08-13-2011, 09:27 AM
  #6349
Registered Users

LoveMy89Anya's Avatar

Join Date: Feb 2011
Location: Baltimore, Maryland
Posts: 764
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee
Engine: Inline 6
Default

Originally Posted by LoveMy89Anya
i cant provide pics atm, my phone is dead. however, i can describe it better.

basically, i accidently tried to shift out of park when i didnt have the key in ( had a moron moment ), and as a result ripped the shifter out of its proper place. if you take the center console off you see the shifter mechanism, gold colored, and you see that when you push the button on the shifter it pushes a little lever down allowing you to freely move the shifter along the half-circle track. well, the part that moves along that track has become crooked, at a slight angle from what it should be. i've tried to push/pull it back into alignment, but it wont budge.


actually, i googled it and found pix on jeepforum that better explain it. scroll down to the first pic with blue and red circles on it. that thing under the blue circle is what im talking about.


http://www.jeepforum.com/forum/f13/9...tment-1101513/
never got an answer on this...
LoveMy89Anya is offline
Old 08-13-2011, 09:46 AM
  #6350
Senior Member

Cnwxj's Avatar

Join Date: Jan 2011
Posts: 596
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Originally Posted by LoveMy89Anya
never got an answer on this...
You may have to replace it. If you bent the selector detent it will never be right again( I know from experience.).
Cnwxj is offline
Old 08-13-2011, 09:49 AM
  #6351
CF Veteran

sycoglitch's Avatar

Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by LoveMy89Anya
never got an answer on this...
I'm stumped on this one. I know if I was in your position I'd probably beat the thing straight and when that doesn't work I would be lost. I hope you figure it out good luck
sycoglitch is offline
Old 08-13-2011, 01:21 PM
  #6352
Junior Member

heep xj's Avatar

Join Date: Jul 2011
Location: Lexington,SC
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l ho
Default

I started my jeep up and the famous no bus light came on but here is where it gets interesting . I had a air bag light , check engine light and none of the guages were working .... WTF??? then after about 10 min all lights went off all guages started working od was reading mileage then after lettinng it idle for 30 min all lights came back on guages failed again and no bus came back??? Would replaceing the two harness plugs in the back of he cluster fix this or is it more serious.

Next on the list of WTF the power driver seat will go up and down but not forward and backward .I was looking at the bottom of the seal and messing with the switch and I think the switch is bad. The pass side will go up down and forward but not backward . Are the switches the most comon failure point ?? Any and all leads are greatly appreciated.
heep xj is offline
Old 08-13-2011, 01:47 PM
  #6353
CF Veteran

sycoglitch's Avatar

Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by heep xj
I started my jeep up and the famous no bus light came on but here is where it gets interesting . I had a air bag light , check engine light and none of the guages were working .... WTF??? then after about 10 min all lights went off all guages started working od was reading mileage then after lettinng it idle for 30 min all lights came back on guages failed again and no bus came back??? Would replaceing the two harness plugs in the back of he cluster fix this or is it more serious.

Next on the list of WTF the power driver seat will go up and down but not forward and backward .I was looking at the bottom of the seal and messing with the switch and I think the switch is bad. The pass side will go up down and forward but not backward . Are the switches the most comon failure point ?? Any and all leads are greatly appreciated.
Check the cluster ground wire might be loose or corroded and same with the negative battery ground
sycoglitch is offline
Old 08-13-2011, 02:28 PM
  #6354
Junior Member

heep xj's Avatar

Join Date: Jul 2011
Location: Lexington,SC
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l ho
Default

Originally Posted by sycoglitch
Check the cluster ground wire might be loose or corroded and same with the negative battery ground
Will do thanks for the heads up I just replacen the batt with optima yellow top It looks like the main ground and positive cable both go to somewhere in the lower part of the engne ?? Also where is the cluster ground is it behind the cluster or under the lower cover below the wheel. My first cherokee.thanks for heads up.
heep xj is offline
Old 08-13-2011, 02:40 PM
  #6355
CF Veteran

96xjclassic's Avatar

Join Date: Dec 2010
Location: Frederick, Maryland
Posts: 6,880
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 I-6 High output
Default

Originally Posted by heep xj
Will do thanks for the heads up I just replacen the batt with optima yellow top It looks like the main ground and positive cable both go to somewhere in the lower part of the engne ?? Also where is the cluster ground is it behind the cluster or under the lower cover below the wheel. My first cherokee.thanks for heads up.
For the battery ground follow the negative terminal, it should mount to the inner wall of you engine compartment right next to the battery. For the other look directly behind your cluster on the firewall, engine compartment side. Good luck.
96xjclassic is offline
Old 08-13-2011, 07:00 PM
  #6356
Junior Member

Scruffy3k's Avatar

Join Date: Aug 2011
Location: Alexandria
Posts: 40
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Default

did the 88 cherkoee's have the option of getting cup holders?
Scruffy3k is offline
Old 08-13-2011, 07:02 PM
  #6357
CF Veteran

sycoglitch's Avatar

Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by Scruffy3k
did the 88 cherkoee's have the option of getting cup holders?
Me personally, I don't know but there are aftermarket ways of adding them
sycoglitch is offline
Old 08-13-2011, 07:10 PM
  #6358
Junior Member

Scruffy3k's Avatar

Join Date: Aug 2011
Location: Alexandria
Posts: 40
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Default

Originally Posted by sycoglitch
Me personally, I don't know but there are aftermarket ways of adding them
i've seen a picture on here and someone had a cup holder like above the emergency brake. it looked like an OEM cup holder.
Scruffy3k is offline
Old 08-13-2011, 07:13 PM
  #6359
CF Veteran

96xjclassic's Avatar

Join Date: Dec 2010
Location: Frederick, Maryland
Posts: 6,880
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 I-6 High output
Default

Originally Posted by Scruffy3k
i've seen a picture on here and someone had a cup holder like above the emergency brake. it looked like an OEM cup holder.
They don't exist. Unless you've seen them with your own eyes don't believe the hype! Jk
96xjclassic is offline
Old 08-13-2011, 07:15 PM
  #6360
CF Veteran

odgreen's Avatar

Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Likes: 0
Received 8 Likes on 8 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Scruffy3k

i've seen a picture on here and someone had a cup holder like above the emergency brake. it looked like an OEM cup holder.

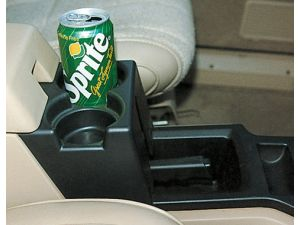

http://www.quadratec.com/products/72151_01.htm
Attached Thumbnails XJ Ask the Question Thread-image-3204079561.jpg
odgreen is offline
