BODCherokee

thanks man, thats exactly what i was looking for.

BODCherokee

i just went through replacing all of my steering components trying to get rid of all the play i had. (1/4 turn of play at the steering wheel, real bad) That sounds like play in your steering box. But i dont think 1/16 of an inch is anything to worry about.

1plunk

Anyone know the bolt amd Nut sizes for the stock front and rear bumpers, putting my aftermarket ones on and anticipating a lot of broken bolts

dukie564

i believe they're 5/16" X course thread, but they use speed clips, which will probably break way before the bolt will (mine did) leaving you with a spinning chunk of sheet metal...i'm not sure what size the holes are

did you get new frame tie in brackets for the bumper? If so the stock bumper supports probably won't be used.

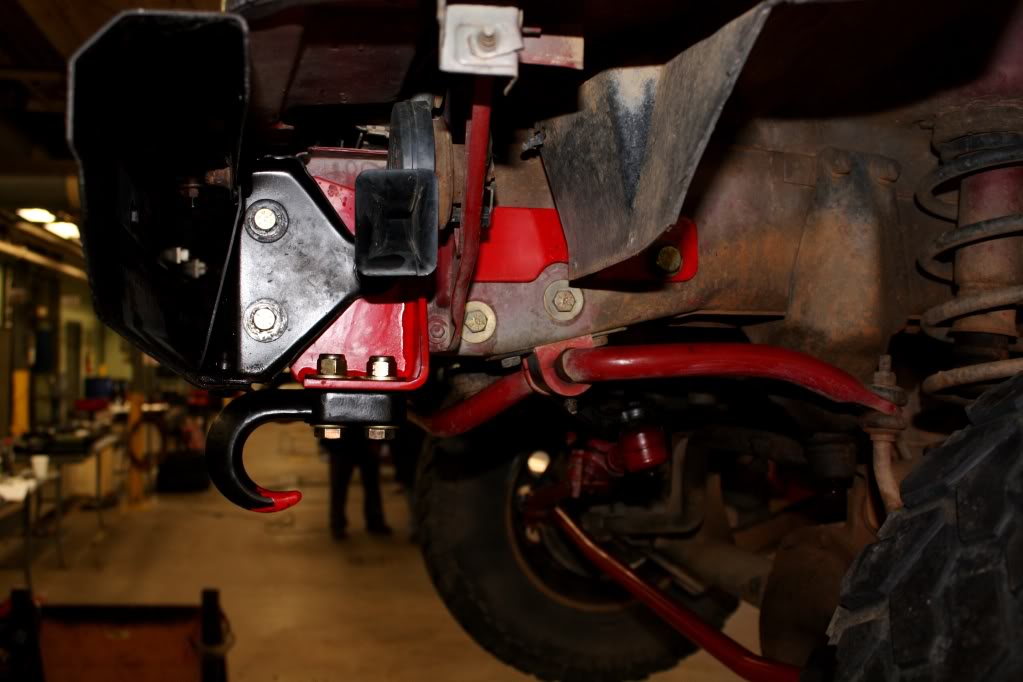

just for reference here's what the stock stuff will look like when you take the caps off

BODCherokee

loving the black hooks with blood paint on the tip. i hope u dont mind if i steal that idea. where'd you get those mounting brackets?

dukie564

They're either Rugged Ridge or C4x4 tow hook brackets...not sure

and thanks man - they're my zombie killers

1plunk

I got the bumper from little Leonard, if that helps, I believe those are the bolts I need, I just assume I'm going to break them or cut then off because that's how everything else has gone haha

adiga

hi all
i need a help please
i have jeep cherokee 1990 limited 4.0L automatic
i have the jeep adapter but i need program on cd or something like that
that i can test my jeep with laptop not snap on mt2500 scanner
please help me ??????

BODCherokee

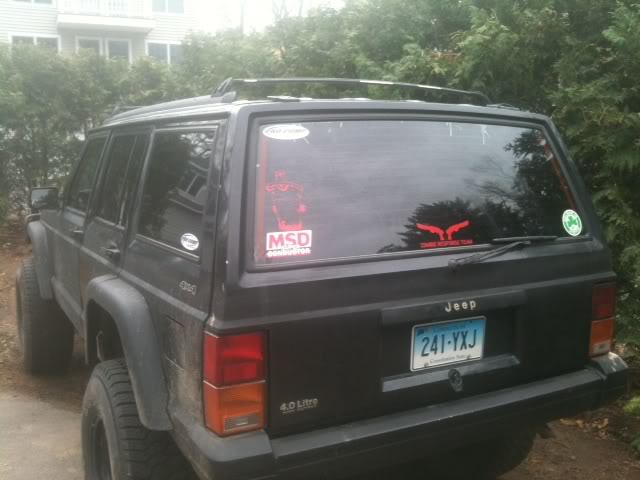

yeah buddy!! Join the ZOMBIE RESPONSE TEAM

dukie564

haha...oh man...

hate to break it to you man, but your year jeep does NOT have on board diagnostics, thus no PCM port and no ability to use a scan tool (RENIX engine management system).

Sorry you have to use old school manual diagnostics and your brain to diagnose problems on your jeep.

cvfd83

I have a 98 cherokee with select trac 4wd when i put it in 4w pt or ft it seems like its not all the way in and when i go to put it out it will not disengage i have to drive back and fourth to get it to disengage can some one give me some ideas of whats wrong?

dukie564

sounds like your linkage needs adjusting.

http://www.jeepforum.com/forum/f13/a...nkage-1008558/

BotakBeng

Do i need an alignment after adjusting lower control arm length....i'm trying to find a sweet spot for the pinion and castor angle.

Thx.

assetts91

Maybe just the drag link, when you adjust the caster it will bring your drag link either forward (Adjusting the Lowers shorter) or back( adjusting the lowers to be longer) measure the distance between the inside of your front tires before you adjust the arms and make sure that stays the same, that will make sure your toe doesn't get messed up when you adjust the axle. If it does get misaligned, once again bringing the drag link back into normal geometry should set it right again

wmmccall

Was there any changes throughout the XJ's production run where the engine compartment was changed as far as width between the wheel wells?

I've got a '97 Sport. I know it's a goofy question.
