XJ Dash Lights Mod
#361
Junior Member
Join Date: Dec 2011
Location: Bixby, OK
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee

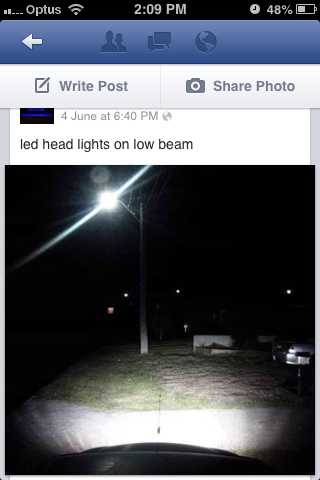

These are the LED headlights I have bought ! $125 Aussie per pair and bright bright bright
Attachment 197830
Attachment 197831
Attachment 197832
Attachment 197830
Attachment 197831
Attachment 197832
Great thread!! So you swapped out your H4 headlamp bulb w/the LED bulb? This is very interesting to me... I might have to give this a try as I'm tired or replacing my H4 bulbs ~ annually. I have Cibie Euro Lights, upgraded wiring harness and Narva 85/100W bulbs.... they seem to last ~ a year or less before I have to replace them.
What is your current headlight configuration? Are the LEDs a nice sharp cut-off?
#363
Seasoned Member
Join Date: Sep 2011
Location: Perth, Western Australia
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, sump guard, snorkel, LPG system, red and yellow top Optima batteries.
Great thread!! So you swapped out your H4 headlamp bulb w/the LED bulb? This is very interesting to me... I might have to give this a try as I'm tired or replacing my H4 bulbs ~ annually. I have Cibie Euro Lights, upgraded wiring harness and Narva 85/100W bulbs.... they seem to last ~ a year or less before I have to replace them.
What is your current headlight configuration? Are the LEDs a nice sharp cut-off?
I have a standard wiring harness in my jeep but that will be ok because of the lower wattage and current drawn by these globes.
When I get them I will post pics or a video of the lights against a wall to show the "cut". Being LEDs I think it will be sharp from hi to low.
#364
Seasoned Member
Join Date: Sep 2011
Location: Perth, Western Australia
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, sump guard, snorkel, LPG system, red and yellow top Optima batteries.
#365
These are all the lights most will do for 97-01
5-neowedge t5 for the gauge cluster
2-194s for the 4wd/tranny (must have a diameter less then 10mm
2-3 neowedge t4 for the defroster, rear wiper and fog light if applicable
2-neowedge t4 for hvac
5-(or however many overhead lights you have) 44mm festoons
2-1156 for the footwells
My footwell LEDs were broken within a week from kicking them with my feet so I bought four 30cm led strips and wired them into we're the original lights went.
You can get these from superbrightleds.com, vleds.com, amazon and eBay.
5-neowedge t5 for the gauge cluster
2-194s for the 4wd/tranny (must have a diameter less then 10mm
2-3 neowedge t4 for the defroster, rear wiper and fog light if applicable
2-neowedge t4 for hvac
5-(or however many overhead lights you have) 44mm festoons
2-1156 for the footwells
My footwell LEDs were broken within a week from kicking them with my feet so I bought four 30cm led strips and wired them into we're the original lights went.
You can get these from superbrightleds.com, vleds.com, amazon and eBay.
I'm quite aggravated..I bought all these exact bulbs for my 01 and NONE of them are fitting...they require immense grinding and filing and even then some won't fit..I haven't even tackled the dash yet and am debating whether or not I should even bother!
(not that its the fault of anyone in this thread) but I am not pleased with these VLED people
#367
Seasoned Member
Join Date: Sep 2011
Location: Perth, Western Australia
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, sump guard, snorkel, LPG system, red and yellow top Optima batteries.
I'm quite aggravated..I bought all these exact bulbs for my 01 and NONE of them are fitting...they require immense grinding and filing and even then some won't fit..I haven't even tackled the dash yet and am debating whether or not I should even bother!
(not that its the fault of anyone in this thread) but I am not pleased with these VLED people
#368
Seasoned Member
Join Date: Sep 2011
Location: Perth, Western Australia
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, sump guard, snorkel, LPG system, red and yellow top Optima batteries.
Just paint them with some of your wife's nail polish ! Or get some globe tint from an auto shop.
I have used both on tail lights and indicators, globe tint works better because it doesn't reduce light output too much.
I have used both on tail lights and indicators, globe tint works better because it doesn't reduce light output too much.
#369
Junior Member
Join Date: Dec 2012
Location: Cross Lanes, WV
Posts: 72
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0l
I've installed most of the LEDs in my '00 WJ. Noticeable difference! I mangled one putting it in, so I'll be getting a replacement shortly. LOL And that itty-bitty one in the rear defroster switch.....are you all sure that's a T4 and not a T3??
#370
Seasoned Member
Join Date: Sep 2011
Location: Perth, Western Australia
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, sump guard, snorkel, LPG system, red and yellow top Optima batteries.
Got some new globes delivered today

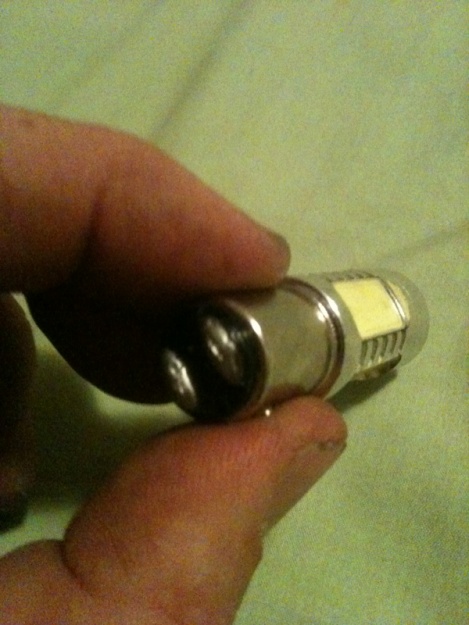

The first lot pictured are 7.5 watts each, dual pole for the combo tail/brake lights. I am super happy with these !!! Very tough aluminium construction and very bright. These globes look too good to hide away in my tail lights !

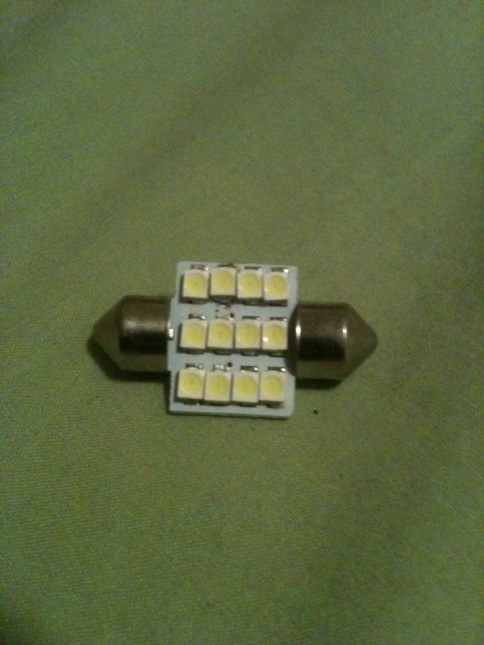

I also received these 12 SMD 31mm festoon globes. Whilst not twice as bright as the 6SMD globes (but nearly), they do have a PURE WHITE light. I didn't notice the 6SMDs have a slight blue tint.
Very very happy with these.
#371
CF Veteran
Join Date: Jun 2011
Location: Colorado
Posts: 2,448
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
So this isn't probably possible, but there's no write up on using a 96+ dash in an older XJ is there? I'm assuming the connector in the back would be different, and there may be an issue with fitting.. but I'm curious.
#372
Seasoned Member
Join Date: Sep 2011
Location: Perth, Western Australia
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, sump guard, snorkel, LPG system, red and yellow top Optima batteries.
'98 and up have a different dash so, NO and
( I think ) pre '94 have a mechanical cable for the speedo, so, NO ?
#373
CF Veteran
Join Date: Aug 2012
Location: Bentonville, AR
Posts: 1,281
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1990
Model: Cherokee
Engine: I6 4.0
I have a '94 sport, a '96 classic and a '97 sport and the dashes and wiring plugs are all the same, so if you are talking about swapping between these years, then yes the swap is possible.
'98 and up have a different dash so, NO and
( I think ) pre '94 have a mechanical cable for the speedo, so, NO ?
'98 and up have a different dash so, NO and
( I think ) pre '94 have a mechanical cable for the speedo, so, NO ?
84-87 seem to be proprietary to those years and their engines (these have mechanical speed cables and are made by AMC.
88-90 are the renix years and have mechanical speedo cables (even though 87 is renix and the first 4.0 it isn't included).
91-96 is when Chrysler made the speedo electric but it looks like a 88-90 cluster on the front.
97-01 is for the newest body style for the XJ.
If you are wondering, how do I know this stuff? I have taken clusters out of all the "generations". Sometimes I sell them, sometimes I use them for upgrades. So 91+ is electric speedometers. *Everything I mentioned applies to US XJs, other countries will vary.*
Last edited by rmoore1031; 06-20-2013 at 08:34 PM. Reason: edit for US information
#374
Seasoned Member
Join Date: Sep 2011
Location: Perth, Western Australia
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, sump guard, snorkel, LPG system, red and yellow top Optima batteries.
I think you are getting your numbers mixed up. XJ clusters seemed to have changed with other options through out the "generations".
84-87 seem to be proprietary to those years and their engines (these have mechanical speed cables and are made by AMC.
88-90 are the renix years and have mechanical speedo cables (even though 87 is renix and the first 4.0 it isn't included).
91-96 is when Chrysler made the speedo electric but it looks like a 88-90 cluster on the front.
97-01 is for the newest body style for the XJ.
If you are wondering, how do I know this stuff? I have taken clusters out of all the "generations". Sometimes I sell them, sometimes I use them for upgrades. So 91+ is electric speedometers.
How do I know ??? Because I have 3 XJs right now in my yard. And also friends with the West Australian Jeep club president, with whom I have talked about this subject.
