xj unibody...
#46
CF Veteran
Join Date: Jul 2009
Posts: 1,004
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992
Model: Cherokee
Engine: Inline 6 4.0L
whato you live back east? where they dump salt all over the road. it looks like it was parked at the bottom of the ocean. just another reason I spar down my entire chasis and under unibody with black rustoleum one a year, about 8-10 cans
#47
Senior Member
Thread Starter
Join Date: Sep 2009
Location: Olean NY where salt eats jeeps
Posts: 886
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
To Do List: before winter
Fix the uni body(started it today will finish it over the weekend,ill take pics)
Try to sandblast if not undercoat it very well
Make my heater vents work(no clue!!!)
That's all i can think of for the moment.
#48
All I can say is wow man! I have never seen that before. I would change everything over to the other jeep and sell that one for parts. I am fretting over rust on my rocker panals and dont feel so bad now. Good luck and send pics of other jeep when done.
#50
CF Veteran
Join Date: Jul 2009
Posts: 1,004
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992
Model: Cherokee
Engine: Inline 6 4.0L
I like black just cuz it looks good. the whole brand of rustoleum will minimize rust. I guess you could do red or something but you would have to keep it clean or it would look stupid that that wouldbe a full time job. I take off the wheels and do the whole wheel well too and axles and steering arms. ive even done my engine compartment
for the engine i bought some of that engne bright spray and man that works!!! you cover your distributor and electronics and foam everytying else. I takes away all gunk and grease. then I hose it down gently ( so it wont smell at 220 f) then let it dry and get engine enamel spray paint. its made with ceramic particles so its good to 500 F.
for the engine i bought some of that engne bright spray and man that works!!! you cover your distributor and electronics and foam everytying else. I takes away all gunk and grease. then I hose it down gently ( so it wont smell at 220 f) then let it dry and get engine enamel spray paint. its made with ceramic particles so its good to 500 F.
#51
CF Veteran
Join Date: Jul 2009
Posts: 1,004
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992
Model: Cherokee
Engine: Inline 6 4.0L

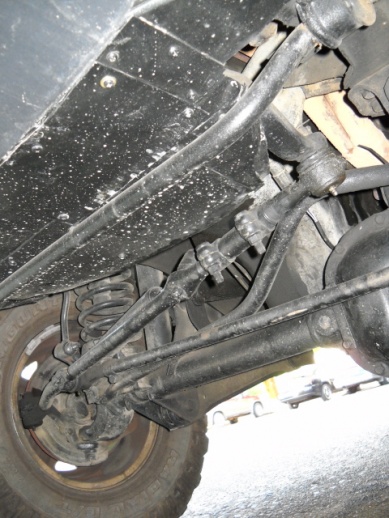

here are some pix under my unipody. the last time I did the Rustoleum paint coats was about 8 months ago. I did the cleaning and paint under the hood about 6 months ago
#52
CF Veteran
Join Date: Jul 2009
Posts: 1,004
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992
Model: Cherokee
Engine: Inline 6 4.0L
oh d if youre wondering what that is above my swaybar in the front, its a mud and water shiel I made out ofsheet metl. the stock rubber one fell apart so I made a better one out of sheet metal. It wont stop a stump but it will rocks and water. its made out of about 6 peices that fit together arround the sway bar and steering arms. you should consider this for next winter too, to keep the salt out of your engine compartment. I still have the cardboard template
#53
Senior Member
Thread Starter
Join Date: Sep 2009
Location: Olean NY where salt eats jeeps
Posts: 886
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
OK today made ALOT of progress!! i have pics so far but my comp is being an a**hole. So it came down to this, i cut out a section off my old jeep about 3ft witht he leaf mount, i cleaned that all up nice and then i cut it in half. after that i got the bolt out of my jeep leaf pack and cut out the broken mount and cleaned up the unibody where im welding. So since i split the other piece in half i welded it on to the previous unibody (acted like a jig/more to weld to and going to be stronger then stock). I also purchased 6ft of 2x2x3/16 angle iron to run on the bottom of both rails:A. Act like rock guards. B. be alot stronger. Got most of that welded up and then i broke a rear brake line so tomorrow il be back bustin ***** finishing my jeep.
pics asap!!
thanks -dylan-
pics asap!!
thanks -dylan-
#55
Senior Member
Thread Starter
Join Date: Sep 2009
Location: Olean NY where salt eats jeeps
Posts: 886
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
https://www.cherokeeforum.com/f58/xj...-thread-26390/
remember all you guys said its impossible to fix a unibody. this fix is going on its 3rd yr lol. ive beatin the dog **** out of it since and its still holding up lol.
remember all you guys said its impossible to fix a unibody. this fix is going on its 3rd yr lol. ive beatin the dog **** out of it since and its still holding up lol.
#56
Newbie
Join Date: Apr 2011
Location: New York
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
GreenXJ95,
I have the exact same frame issue with my 96 XJ. Could you give me any pointers?
Mick
I have the exact same frame issue with my 96 XJ. Could you give me any pointers?
Mick
Last edited by Mick The Mad Man; 04-06-2011 at 10:11 AM.
#57
Junior Member
Join Date: Dec 2010
Location: Kearns
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
That's not true, frames do exist they just come from Ruff Stuff Specialties and other after market vendors via UPS...
mine should be here soon
nathan
-99 xj 136 amp alt, dual batteries, belt driven york, thats all for now
mine should be here soon
nathan
-99 xj 136 amp alt, dual batteries, belt driven york, thats all for now
Last edited by thenag; 04-07-2011 at 06:40 PM.
#58
Senior Member
Thread Starter
Join Date: Sep 2009
Location: Olean NY where salt eats jeeps
Posts: 886
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
#59
Senior Member
Thread Starter
Join Date: Sep 2009
Location: Olean NY where salt eats jeeps
Posts: 886
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
Originally Posted by GreenXJ95
https://www.cherokeeforum.com/f58/xj...-thread-26390/
remember all you guys said its impossible to fix a unibody. this fix is going on its 3rd yr lol. ive beatin the dog **** out of it since and its still holding up lol.
remember all you guys said its impossible to fix a unibody. this fix is going on its 3rd yr lol. ive beatin the dog **** out of it since and its still holding up lol.
