Maryland Cherokee Club
08-12-2012, 05:45 PM
CF Veteran
Join Date: Dec 2010
Location: Frederick, Maryland
Posts: 6,880
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 I-6 High output
Ok, so the map is the only sensor I haven't replaced from the throttle body. Is there a way to check it or is it just swap and hope?
08-12-2012, 06:07 PM
CF Veteran
Join Date: Dec 2010
Location: Frederick, Maryland
Posts: 6,880
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 I-6 High output
08-12-2012, 06:26 PM
CF Veteran
Join Date: Mar 2009
Location: Berea, OH
Posts: 7,996
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
08-12-2012, 06:31 PM
CF Veteran
Join Date: Dec 2011
Location: Pasadena, MD
Posts: 4,006
Likes: 0
Received 1 Like
on
1 Post
Year: 1987
Model: Wagoneer
Engine: Renix 4.0
08-12-2012, 06:36 PM
CF Veteran
Join Date: Mar 2009
Location: Berea, OH
Posts: 7,996
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Unplug the sensor...
Using a jumper wire, connect terminals A and C (the two outside terminals) to their corrsponding terminals on the plug (connecting them like it was plugged in)
Connect the positive side of an voltmeter to terminal B (center)
Connect negative side of Voltmeter to ground
turn ignition ON (BUT NOT RUNNING)
Reading should be 4.5 to 5 volts
Start the engine and let it warm up
reading should now be different and should fluctuate with RPM
If it doesn't, check the vacuum line on the MAP sensor for blockage/breaks
If the hose and vacuum are ok....sensor is bad
Hope this helps.
EDIT:
Symptoms for a bad MAP Sensor would be comparable to an old vacuum advance on a distributor. The timing retards because the ECM thinks demand is low (typical failure is low).
It can run very rough at a very low rpm and normally die. If you pull the vacuum line to the map sensor, you'll hear what "crap" sounds like. A failing or malfunctioning MAP won't always give you a "check engine light", it depends on what's going "bad" in the sensor.
Last edited by jimmy21669; 08-12-2012 at 06:39 PM.
08-12-2012, 06:59 PM
Member
Join Date: Apr 2012
Posts: 185
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by gone4x4
sweetness--i know where ya stand with sliders, whutta bout t/c-n-oil/engine skids?
08-12-2012, 07:50 PM
CF Veteran
Join Date: Feb 2012
Location: Bowie, MD
Posts: 2,716
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
I've actually got enough parts for a complete 5-5.5" lift

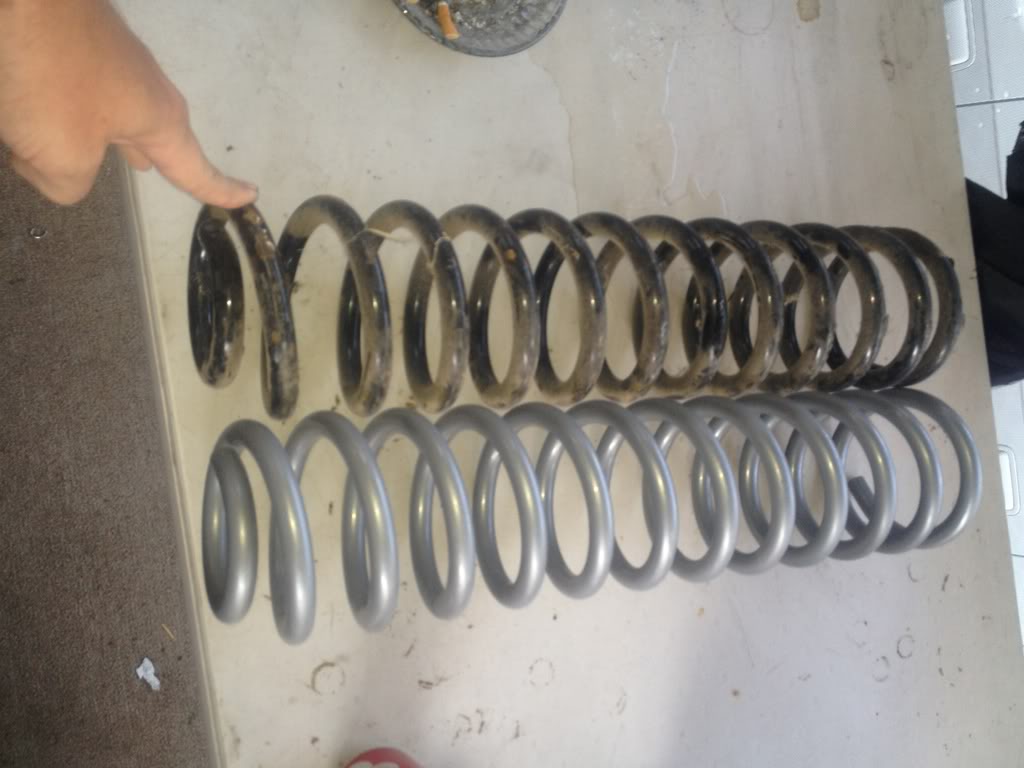

RC 5.5" coils (next to my RE 5.5" coils for comparison)

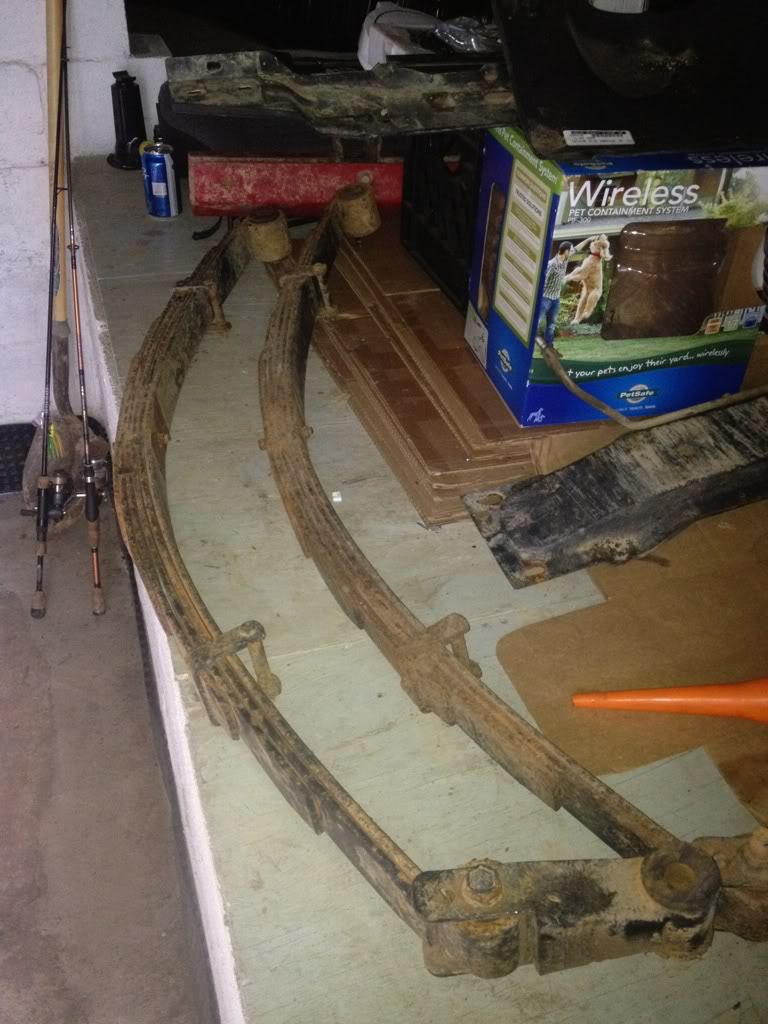

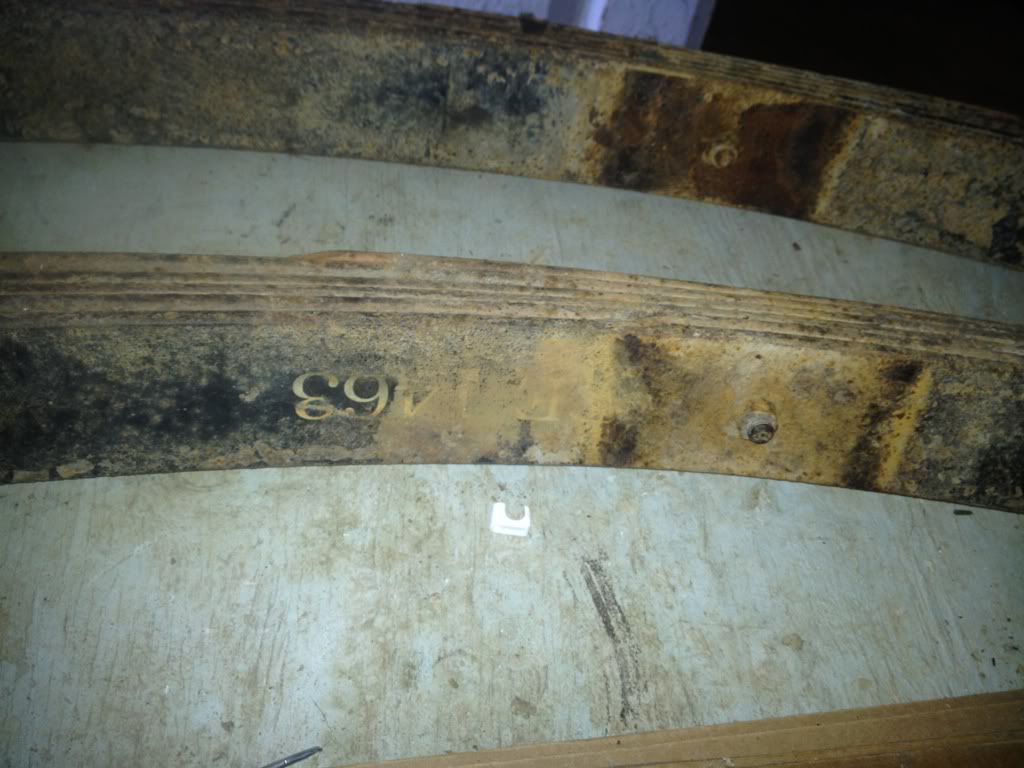

RE 3.5" extreme duty leaf packs with 1-1.5" RC shackles (Bushings are still in decent shape)

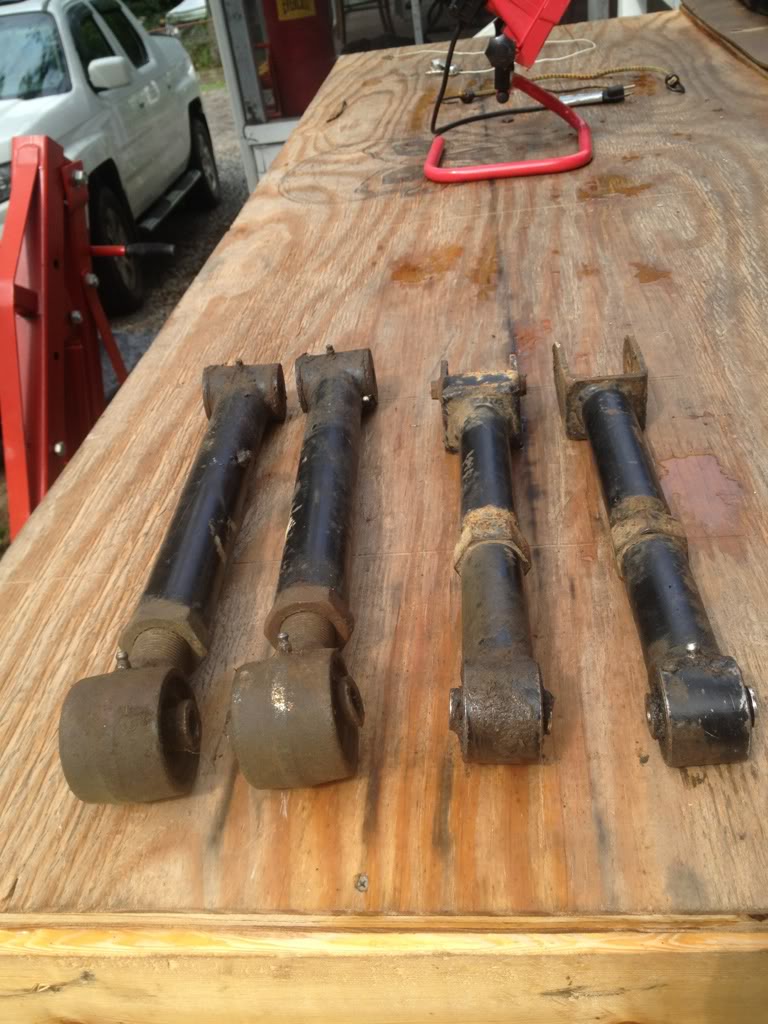

Adjustable Upper and lower control arms with flex joints
I also have a pair of RC Control arm drop brackets
I'd like to get around $500 obo for it all
RC 5.5" coils (next to my RE 5.5" coils for comparison)
RE 3.5" extreme duty leaf packs with 1-1.5" RC shackles (Bushings are still in decent shape)
Adjustable Upper and lower control arms with flex joints
I also have a pair of RC Control arm drop brackets
I'd like to get around $500 obo for it all
Last edited by mikefrost; 08-12-2012 at 08:16 PM.
08-12-2012, 08:08 PM
CF Veteran
Join Date: Feb 2012
Location: Laurel, MD
Posts: 2,574
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
