Maryland Cherokee Club
CF Veteran
Join Date: Dec 2010
Location: Frederick, Maryland
Posts: 6,880
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 I-6 High output
Moderator of Jeeps
Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
CF Veteran
Join Date: Feb 2012
Location: Forest Hill, Maryland
Posts: 6,468
Likes: 0
Received 18 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
CF Veteran
Join Date: Feb 2012
Location: Laurel, MD
Posts: 2,574
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
CF Veteran
Join Date: Feb 2012
Location: Forest Hill, Maryland
Posts: 6,468
Likes: 0
Received 18 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Seasoned Member
Join Date: Dec 2012
Location: Middletown, Maryland
Posts: 451
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 I6
Rear Axles
(Note on Dana 35 axles sometimes referred to as Dana 35C - The "C" does not stand for c-clip. It stands for "custom" meaning it came from Dana unfinished.)
(Note on 8.25 axles - none of these axles were used on XJs with ABS brakes. If you have ABS, you have the Dana 35. Without ABS you could have either axle. 8.25 axles are c-clip)
Dana 35 non c-clip - 27 spline, 1.18" diameter shafts, 7.58" ring gear, 2.62" axle tube - used 84-89
Dana 35 c-clip - 27 spline, 1.18" diameter shafts, 7.58" ring gear, 2.62" axle tube - used 90-01
Chrysler 8.25 - 27 spline, 1.17" diameter shafts, 8.25" ring gear, 3" axle tube - used 91-96
Chrysler 8.25 - 29 spline, 1.21" diameter shafts, 8.25" ring gear, 3" axle tube - used 97-01
Dana 44 non c-clip - 30 spline, 1.31" diameter shafts, 8.5" ring gear, 2.75" axle tube - used 87-89 on some(not all) XJs equipped with towing package.
(Note on Dana 35 axles sometimes referred to as Dana 35C - The "C" does not stand for c-clip. It stands for "custom" meaning it came from Dana unfinished.)
(Note on 8.25 axles - none of these axles were used on XJs with ABS brakes. If you have ABS, you have the Dana 35. Without ABS you could have either axle. 8.25 axles are c-clip)
Dana 35 non c-clip - 27 spline, 1.18" diameter shafts, 7.58" ring gear, 2.62" axle tube - used 84-89
Dana 35 c-clip - 27 spline, 1.18" diameter shafts, 7.58" ring gear, 2.62" axle tube - used 90-01
Chrysler 8.25 - 27 spline, 1.17" diameter shafts, 8.25" ring gear, 3" axle tube - used 91-96
Chrysler 8.25 - 29 spline, 1.21" diameter shafts, 8.25" ring gear, 3" axle tube - used 97-01
Dana 44 non c-clip - 30 spline, 1.31" diameter shafts, 8.5" ring gear, 2.75" axle tube - used 87-89 on some(not all) XJs equipped with towing package.
Seasoned Member
Join Date: Dec 2012
Location: Middletown, Maryland
Posts: 451
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 I6
CF Veteran
CF Veteran
Join Date: Aug 2011
Location: New Market
Posts: 4,323
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
CF Veteran
Join Date: Feb 2012
Location: Forest Hill, Maryland
Posts: 6,468
Likes: 0
Received 18 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L

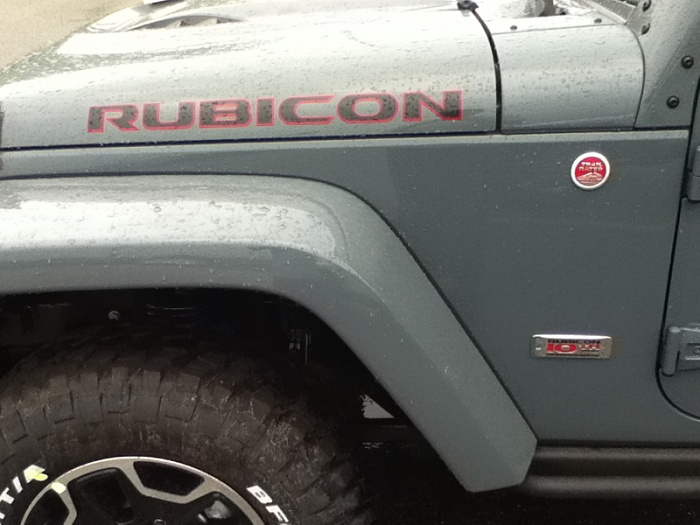

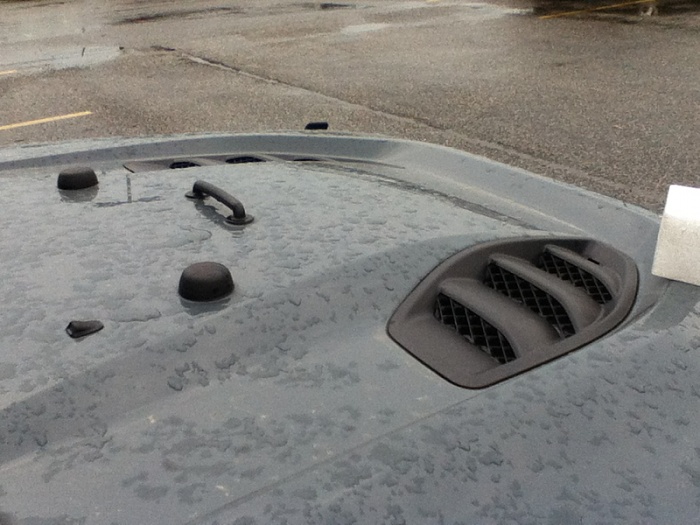

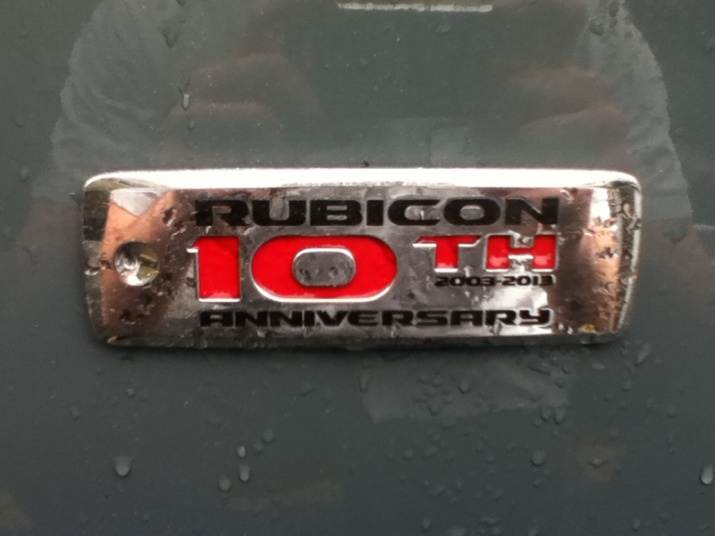

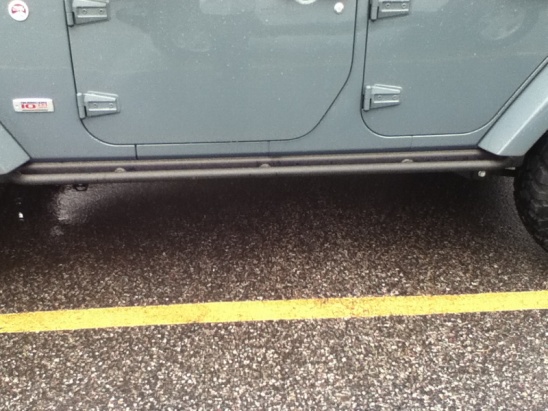

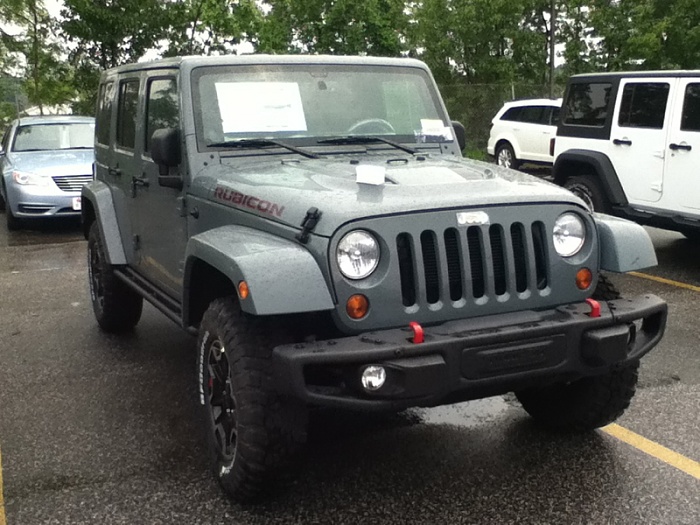

look what we just got in. pretty sweet except for the price tag. even has sliders!
can't wait to put it up on the rocks
can't wait to put it up on the rocks
CF Veteran
Join Date: Dec 2012
Location: Bowie,MD
Posts: 1,761
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
CF Veteran
Join Date: Sep 2011
Location: Frederick, MD
Posts: 10,447
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Originally Posted by kuzican
look what we just got in. pretty sweet except for the price tag. even has sliders!
can't wait to put it up on the rocks
can't wait to put it up on the rocks
