Project Do work - 2001 XJ Build (Pic intensive)
#271
Senior Member
Join Date: Jun 2010
Location: oregon
Posts: 881
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Really X2 what Ausxj said.. It takes talent to take a pic that shows something, I know. It also takes dedication to stop and take the pic while your in the middle of something especially "new terrritory" like your doing. 2 thumbs up dude and make that a third thumb up.
#272
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Columbus, OH
Posts: 415
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Really X2 what Ausxj said.. It takes talent to take a pic that shows something, I know. It also takes dedication to stop and take the pic while your in the middle of something especially "new terrritory" like your doing. 2 thumbs up dude and make that a third thumb up.
And don't give me too much credit for "stopping to take a pic..." Most of the time I have to stop anyway to read the next step in the instructions or read from the laptop hahaha.
#273
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Columbus, OH
Posts: 415
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Went shopping
Stopped by the salvage yard today, picked up a front driveshaft off an auto XJ. I'm gonna toss it on there just to get me around town until I order up the custom rear DS.
Nothin special, but have a look:
CV style:
Slippage:
BTW, also removed the TC drop! Looks a lot cleaner under there now. Also went ahead and remeasured for the custom DS, the new measurement is 33.5'' after removal of the TC drop.
You've all seen this before, just excited...
Will try to install the new-to-me front DS in the rear position tomorrow. Forgot to take the yoke straps while I was at the salvage yard so will have to pick some up, otherwise it'd already be installed.
Nothin special, but have a look:
CV style:
Slippage:
BTW, also removed the TC drop! Looks a lot cleaner under there now. Also went ahead and remeasured for the custom DS, the new measurement is 33.5'' after removal of the TC drop.
You've all seen this before, just excited...
Will try to install the new-to-me front DS in the rear position tomorrow. Forgot to take the yoke straps while I was at the salvage yard so will have to pick some up, otherwise it'd already be installed.
#274
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Columbus, OH
Posts: 415
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Speedo Gear Replacement
The new speedo gear and o-ring for the speedometer assembly arrived from Quadratec today. Pretty straightforward install, but took some pictures anyway.
When shopping around online for the parts, I found a little discrepancy in exactly which gear to purchase, there was variation in the charts/manufacturers. I ended up finding a couple speedometer gear charts that matched up so I went with a 40 tooth gear. I have 4.56 gears and 32'' tires.
Remove the retaining bolt and clip...
Remove the speedo gear assembly...
Assembly hanging from TC, ready to swap gear out...
The factory gear pops right off...
Comparison of new and old. The new gear is the orange one, it's larger. Also pictured is the old o-ring and it's new replacement.
Pop the new gear on and install the new o-ring, here I am in the process of seating the o-ring...
Reinstall the speedo assembly but be sure to orient the gear properly. This is achieved by lining up the proper gear tooth range. My new gear is a 40 tooth gear, so I chose the 39-45 range stamped on the side of the speedo assembly. On the stock tailhousing there is a mark to line up the speedo assembly with, but the new tailhousing has no mark so I lined it up as best I could and using the retaining clip's visible leg as a landmark.
Once it's lined up, you can tighten it down and you're done.
I still need to take it for a test drive and validate the speedometer accuracy with my GPS system.
When shopping around online for the parts, I found a little discrepancy in exactly which gear to purchase, there was variation in the charts/manufacturers. I ended up finding a couple speedometer gear charts that matched up so I went with a 40 tooth gear. I have 4.56 gears and 32'' tires.
Remove the retaining bolt and clip...
Remove the speedo gear assembly...
Assembly hanging from TC, ready to swap gear out...
The factory gear pops right off...
Comparison of new and old. The new gear is the orange one, it's larger. Also pictured is the old o-ring and it's new replacement.
Pop the new gear on and install the new o-ring, here I am in the process of seating the o-ring...
Reinstall the speedo assembly but be sure to orient the gear properly. This is achieved by lining up the proper gear tooth range. My new gear is a 40 tooth gear, so I chose the 39-45 range stamped on the side of the speedo assembly. On the stock tailhousing there is a mark to line up the speedo assembly with, but the new tailhousing has no mark so I lined it up as best I could and using the retaining clip's visible leg as a landmark.
Once it's lined up, you can tighten it down and you're done.
I still need to take it for a test drive and validate the speedometer accuracy with my GPS system.
#275
Junior Member
Join Date: Jul 2010
Location: Australia
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Got the DS measurement complete, now all I gotta do is order it up. It was 33'' from yoke to yoke.
Valvoline ATF +4 Full Synthetic. I didn't really put much thought to it really, it was basically all they had on the shelf.
Thanks dude. Trying to make this thread useful to other beginner's like myself who are new to Jeeps and enjoy modifying them. I appreciate the feedback.
You figure out what you're gonna do with your hood yet?
Valvoline ATF +4 Full Synthetic. I didn't really put much thought to it really, it was basically all they had on the shelf.
Thanks dude. Trying to make this thread useful to other beginner's like myself who are new to Jeeps and enjoy modifying them. I appreciate the feedback.
You figure out what you're gonna do with your hood yet?
Yep !!! will be posting some pics this w/end !!!!
#276
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Columbus, OH
Posts: 415
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Front DS installed in the rear
Looking forward to seeing your decision.
Finally got the "rear" ds installed and took the XJ for a spin. It's nice to have rear-wheel drive back.
Drove around the neighborhood at low speeds before going on the highway. At low speeds, the vibrations are 100% eliminated. The drivetrain is smooth. On the highway, around 50mph+ there is still a little residual vibration, though it is SIGNIFICANTLY reduced. If I were asked to put a number on it, I'd say comparing the before vibrations to the current setup, there is an 85% reduction in vibration. It's not bad at all.
The vibration still occurs mostly during deceleration. Also, keep in mind that my pinion angle has not been corrected yet. I understand that is a pretty important part of the equation once you have converted your slip yoke to a fixed yoke (SYE). So, the pinion angle will be my next project.
I'm also happy to report the speedometer is working great! In fact, it's only 1mph off at highway speeds per my GPS system. I finally know how fast or slow I'm going. Additionally, I have not noticed any leaks around the speedo gear housing. Guess that o-ring did the trick.

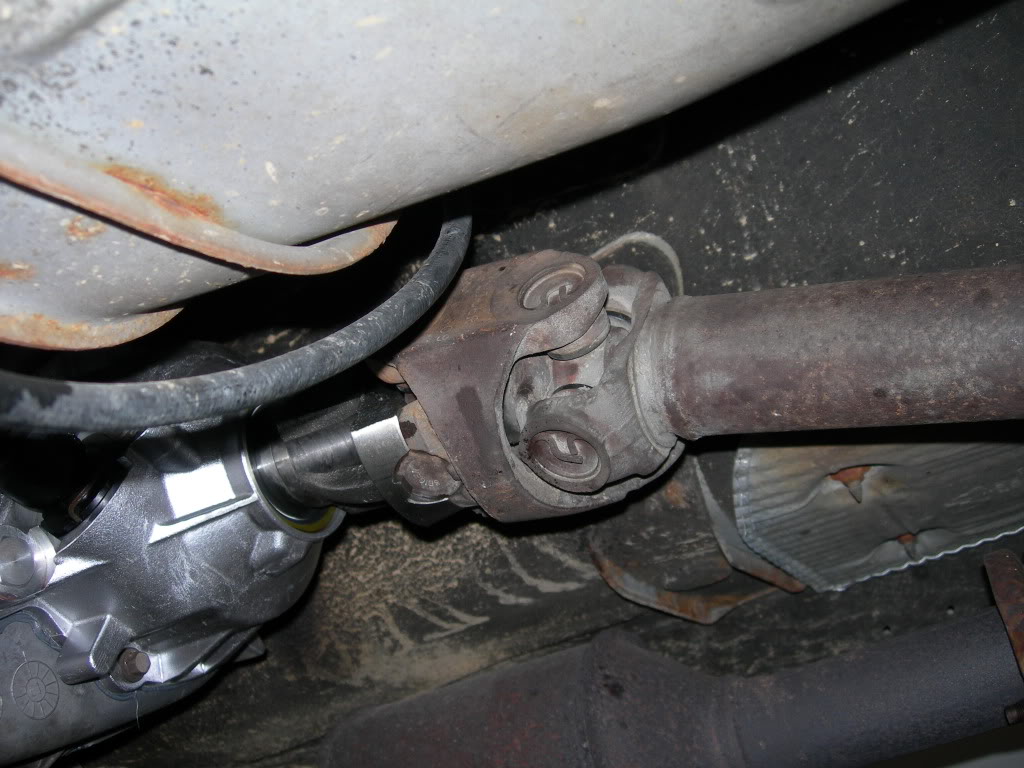

I did take a couple pictures of the final product...
Just to give you an idea of how much extension is required at resting height:
I'm not sure how much more extension this DS has, but I don't plan on being too aggressive with it. It's just gotta get me by until I can get the the custom DS made.
Finally got the "rear" ds installed and took the XJ for a spin. It's nice to have rear-wheel drive back.
Drove around the neighborhood at low speeds before going on the highway. At low speeds, the vibrations are 100% eliminated. The drivetrain is smooth. On the highway, around 50mph+ there is still a little residual vibration, though it is SIGNIFICANTLY reduced. If I were asked to put a number on it, I'd say comparing the before vibrations to the current setup, there is an 85% reduction in vibration. It's not bad at all.
The vibration still occurs mostly during deceleration. Also, keep in mind that my pinion angle has not been corrected yet. I understand that is a pretty important part of the equation once you have converted your slip yoke to a fixed yoke (SYE). So, the pinion angle will be my next project.
I'm also happy to report the speedometer is working great! In fact, it's only 1mph off at highway speeds per my GPS system. I finally know how fast or slow I'm going. Additionally, I have not noticed any leaks around the speedo gear housing. Guess that o-ring did the trick.
I did take a couple pictures of the final product...
Just to give you an idea of how much extension is required at resting height:
I'm not sure how much more extension this DS has, but I don't plan on being too aggressive with it. It's just gotta get me by until I can get the the custom DS made.
#277
Junior Member
Join Date: Jul 2010
Location: Australia
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Just went through your postings and have noticed that the all of your pics are saying something about Bandwith exceeded ???? I cant look at the pics... I want to see the section about when you changed the steering damper ??? have you noticed this ??
Again great work on the recent RD shaft and T/C mods... yea when the pinion angel is corrected will be much better...
Again great work on the recent RD shaft and T/C mods... yea when the pinion angel is corrected will be much better...
Last edited by AUS XJ JEEP; 09-10-2010 at 05:33 PM.
#278
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Columbus, OH
Posts: 415
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Just went through your postings and have noticed that the all of your pics are saying something about Bandwith exceeded ???? I cant look at the pics... I want to see the section about when you changed the steering damper ??? have you noticed this ??
Again great work on the recent RD shaft and T/C mods... yea when the pinion angel is corrected will be much better...
Again great work on the recent RD shaft and T/C mods... yea when the pinion angel is corrected will be much better...
I've tried to circumvent the problem for future pictures by opening a new/additional account with photobucket. That's why the most recent pictures are still able to be viewed.
Maybe I should look into an alternative host for my pictures....
#280
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Columbus, OH
Posts: 415
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
#281
Seasoned Member
Join Date: Oct 2009
Location: New York
Posts: 329
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Wow i just skimmed/ went through every page on your thread in the past 15-20 minutes and I must say this is one nice clean well done jeep. You did everything the right way the first time. No cutting corners no BS and in such a short period of time as it seems. Nice Jeep man. Good Luck
-Mike
-Mike
#282
Junior Member
Join Date: Aug 2010
Location: Rogers
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89
Model: Cherokee
Engine: 4.0
So what's the total build cost on a rig like this? I have an 89 model? And don't you have to have the TC drop for a lift like this?
#283
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Columbus, OH
Posts: 415
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Wow i just skimmed/ went through every page on your thread in the past 15-20 minutes and I must say this is one nice clean well done jeep. You did everything the right way the first time. No cutting corners no BS and in such a short period of time as it seems. Nice Jeep man. Good Luck
-Mike
-Mike
As far as a quick and dirty estimation goes.... lift = $1000, wheels and tires = $1000, bumper, brakes, SYE, misc. stuff = $1000. If you are frugal and make budget-minded purchases, I'm sure it's possible to build a comparable and even far more capable rig for far less than that. This is especially true if you are able to do much of the work yourself, including being handy with various fabrication processes.
The TC drop is not required per se, but usually any moderate lift will necessitate some type of driveline angle reduction. The TC drop is one way of accomplishing that. An alternate method is to modify the TC with a slip yoke eliminator (SYE) and custom driveshaft. Though more expensive, most consider it to be a superior solution. I started with a TC drop because it came with my lift kit, now that I have a SYE I am able to remove it. Essentially, you either have one or the other (TC drop or SYE).
#285
Junior Member
Join Date: Aug 2010
Location: Chicago, IL
Posts: 34
Likes: 0
Received 1 Like
on
1 Post
Year: 1997
Model: Cherokee
Engine: 4.0HO K&N FIPK2, Gibson chrome headers
Great build man. You are practicing excellent tech.
I went through all the same trials and tribulations with mine, so I'm reading this with a nostalgic grin.
*Subscribed*
I went through all the same trials and tribulations with mine, so I'm reading this with a nostalgic grin.
*Subscribed*
