2001 WJ
#46
I hate to admit that it has been over 2 months since I have updated or posted anything, but everything is together, and my motor is ready to go back in, no hiccups or delays, other than some incorrect bolts on the water-pump pulley, but! I'd love some feedback on the intake and headers, will it be easier to install them on the engine stand, or when the motor is back IN the jeep? I can't seem to find any help or advice on this issues anywhere online. But aside from that, she's ready to be bolted back in. I'll try to update a few pictures, and I'll take some current ones ASAP. I've been loaded down with starting a new job and the holidays, so sorry about the long delay in posts!!
#47

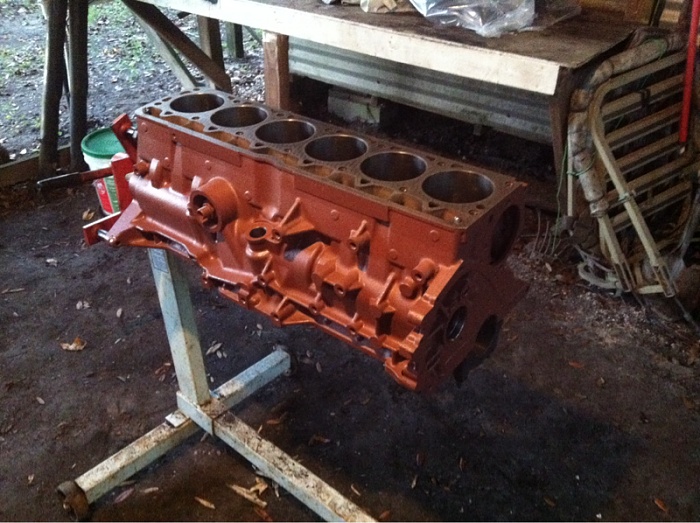

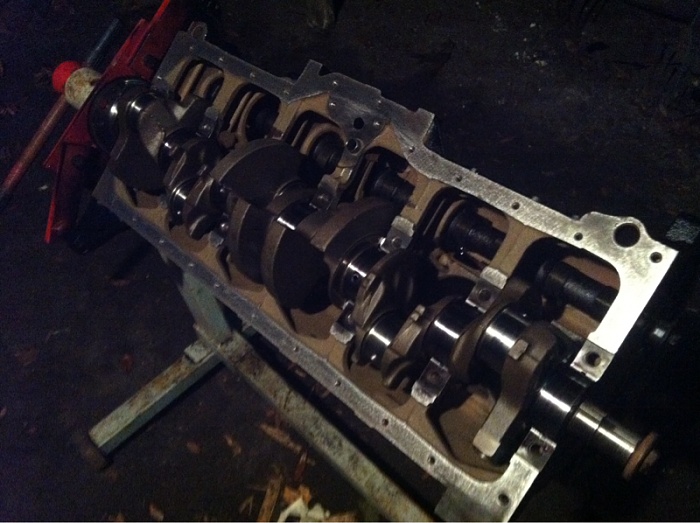

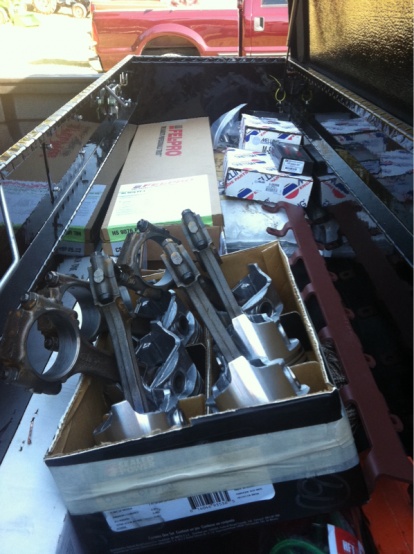

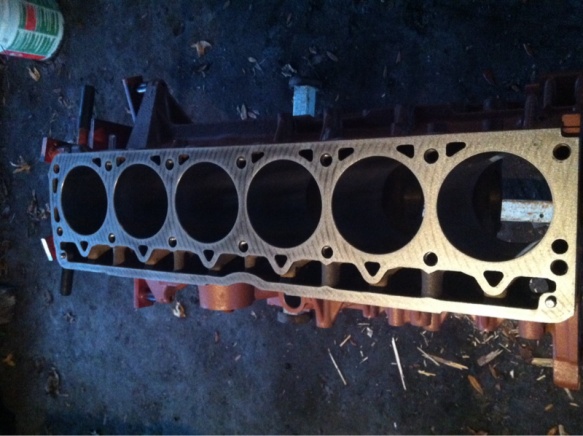

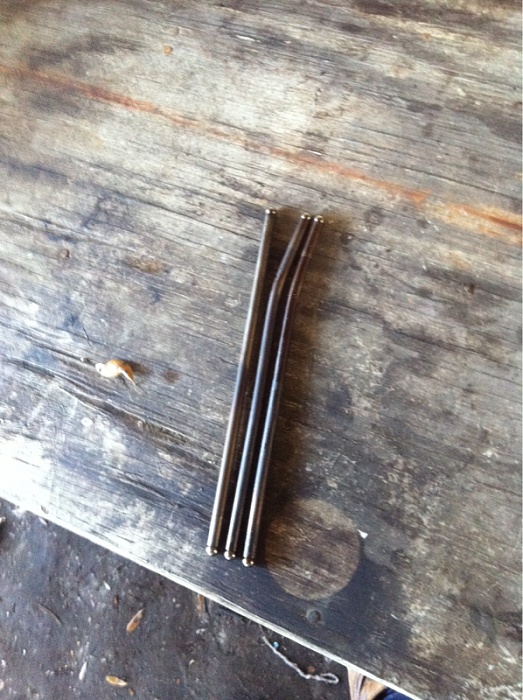

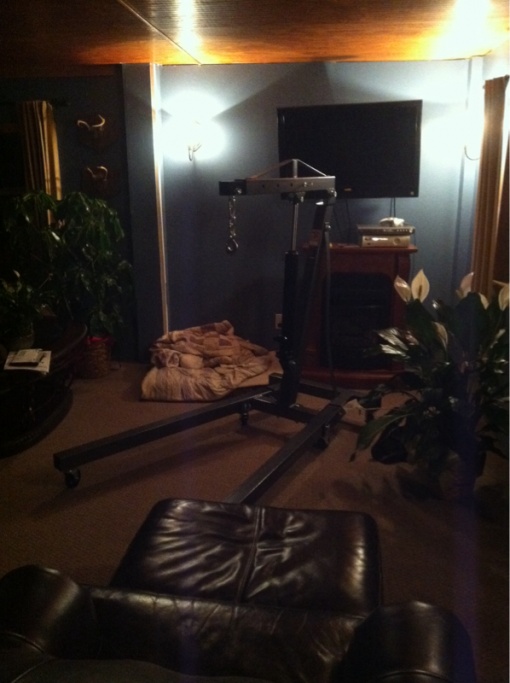

Those are pictures of the machined and primed block, new pistons, the rods were machined, cam was replaced, crank was simply polished, and the close up of the cylinder that you see, that was the #1 cylinder, it had to be cut out and replaced! Everything bored .030 over, head was warped and refinished, a number of the valves had to be replaced, I added a picture of the bend pushrods vs. a new one, and my new engine hoist!! Which I put together in the living room because it's cold outside. Haha!
#48
Old fart with a wrench
You must have a very special woman to allow you to use the living room as a workshop! How did you manage that? My wife had a stroke when I floated my rowboat in the swimming pool to check where my leak was.
Bent pushrods show valve/piston contact. Did it bend the valves? Just asking.
Bent pushrods show valve/piston contact. Did it bend the valves? Just asking.
Last edited by dave1123; 01-29-2014 at 10:25 AM.
#49
Member
Join Date: May 2012
Location: Missouri
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Those are pictures of the machined and primed block, new pistons, the rods were machined, cam was replaced, crank was simply polished, and the close up of the cylinder that you see, that was the #1 cylinder, it had to be cut out and replaced! Everything bored .030 over, head was warped and refinished, a number of the valves had to be replaced, I added a picture of the bend pushrods vs. a new one, and my new engine hoist!! Which I put together in the living room because it's cold outside. Haha!
#50
Senior Member
Join Date: Aug 2011
Location: Pennsylvania
Posts: 690
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Alrighty, so I was looking at your thread. My 2002 needs the engine fixed as It threw a connecting rod. I am curious as to what yours cost. I still have to dig into the engine to find out what is wrong all in all.
Also, I saw you said something about a 96 cherokee engine? I thought they wouldn't work. I have an offer for a 97 Grand Cherokee motor with only 30K miles on it, but I heard they won't work either for a 99-04 GC. This is correct, right?
Also, I saw you said something about a 96 cherokee engine? I thought they wouldn't work. I have an offer for a 97 Grand Cherokee motor with only 30K miles on it, but I heard they won't work either for a 99-04 GC. This is correct, right?
#51
Old fart with a wrench
Yeah, they moved the motor mounting bosses in 99 so the earlier blocks won't fit. They also moved the oil filter because it was in the way of the motor mounts. I think I was told they had to change the location so the 4.7 would fit.
#52
Senior Member
Join Date: Mar 2010
Location: Carrollton, Georgia
Posts: 693
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 Liter High Output
Havent been on in awhile because of my deployment but will definitely keep an eye on this thread. Planning on rebuilding my wj when I get back to good ole south georgia.
#53
Old fart with a wrench
Thank you for your service. I'm a vet too. US Navy 62-66. USS Wasp around Cuba.
Speaking of Georgia, have you seen Atlanta in the snow? Not a good time for those people. I live that **** every day.
Speaking of Georgia, have you seen Atlanta in the snow? Not a good time for those people. I live that **** every day.
