Is this input shaft .750" or .840"
05-16-2011, 05:17 PM
#1
Junior Member
Thread Starter
Join Date: Apr 2011
Location: central new york
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0 Power Tech I-6

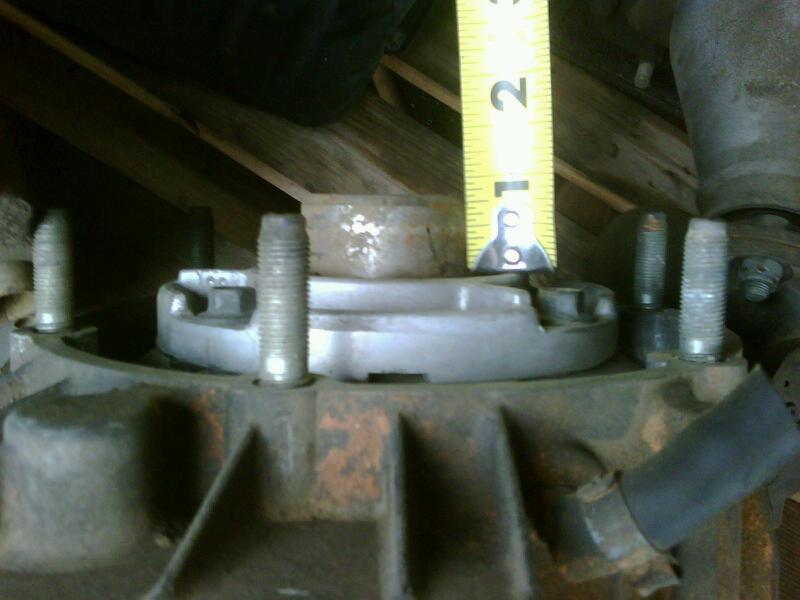

Is this input shaft .750" or .840"
I would say it is closer to .750", they made both lengths for this transfer case. I don't want to buy the wrong one.
Thanks.
Thanks.
05-16-2011, 06:42 PM
#3
Junior Member
Thread Starter
Join Date: Apr 2011
Location: central new york
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0 Power Tech I-6
Now it looks like 13/16" or .8125".........probably a .840"
So where is it supposed to be measured from?
So where is it supposed to be measured from?
Last edited by ny_driver; 05-16-2011 at 06:45 PM.
05-16-2011, 11:26 PM
#6
CF Veteran
Join Date: Sep 2010
Location: Springville, UT
Posts: 1,649
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Grand Cherokee
Engine: 5.2 V8, Dual cold air, dual batts, E-fan, Sanden OBA
Originally Posted by posjeepxj
just swap the inputs and buy a rebuild it while your in there
05-17-2011, 05:38 AM
#7
Junior Member
Thread Starter
Join Date: Apr 2011
Location: central new york
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0 Power Tech I-6
Engine-I6 1993, and yes I'm getting rid of the 249 and installing a 242. I'll try to find one that bolts right in, but I'll rebuild it if I need to.
Thanks.
Thanks.
Last edited by ny_driver; 05-17-2011 at 06:12 AM.
Trending Topics
05-17-2011, 12:26 PM
#8
Junior Member
Thread Starter
Join Date: Apr 2011
Location: central new york
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0 Power Tech I-6
Found a NP242J w/ .750" shaft 30 miles away..............just hope it has the right style gearcut.
I couldn't figure out where the build date was on the case when I looked at it. Now I know I'll go back and look.
This is a guide to show you how to determine the build date and it shows you how to measure the length of the input.
http://www.lunghd.com/Downloads_and_...tification.pdf
I couldn't figure out where the build date was on the case when I looked at it. Now I know I'll go back and look.
This is a guide to show you how to determine the build date and it shows you how to measure the length of the input.
http://www.lunghd.com/Downloads_and_...tification.pdf
Last edited by ny_driver; 05-17-2011 at 12:31 PM.
05-17-2011, 03:05 PM
#9
CF Veteran
Join Date: Sep 2010
Location: Springville, UT
Posts: 1,649
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Grand Cherokee
Engine: 5.2 V8, Dual cold air, dual batts, E-fan, Sanden OBA
Any case made before mid 94 will work, don't get one after that date if you plan on swapping the input shaft cause it will basically eat itself. There should be a small circle tag on the rear of the case that says the manufacture date
05-17-2011, 04:23 PM
#10
Junior Member
Thread Starter
Join Date: Apr 2011
Location: central new york
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0 Power Tech I-6
He said it's the newer style with the different driveshaft and I think it will have the different annulus gear. Guess I gotta keep looking.
Last edited by ny_driver; 05-17-2011 at 09:15 PM.
05-17-2011, 09:35 PM
#13
CF Veteran
Join Date: Sep 2010
Location: Springville, UT
Posts: 1,649
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Grand Cherokee
Engine: 5.2 V8, Dual cold air, dual batts, E-fan, Sanden OBA
Honestly if the input shafts are only off a tenth of an inch I would just swap the whole case. A tenth of an inch to short will not hurt anything
05-17-2011, 09:42 PM
#14
Junior Member
Thread Starter
Join Date: Apr 2011
Location: central new york
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0 Power Tech I-6
The shaft is the right length, but they changed the gearcut in mid 1994.
What were you saying about it eating itself?
What were you saying about it eating itself?
05-17-2011, 10:40 PM
#15
CF Veteran
Join Date: Sep 2010
Location: Springville, UT
Posts: 1,649
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Grand Cherokee
Engine: 5.2 V8, Dual cold air, dual batts, E-fan, Sanden OBA
It will only eat itself if you mix parts in a case between the gear cut change. If you put the whole case in without swapping internals it will be fine
