Originally Posted by Agent_Oragnge

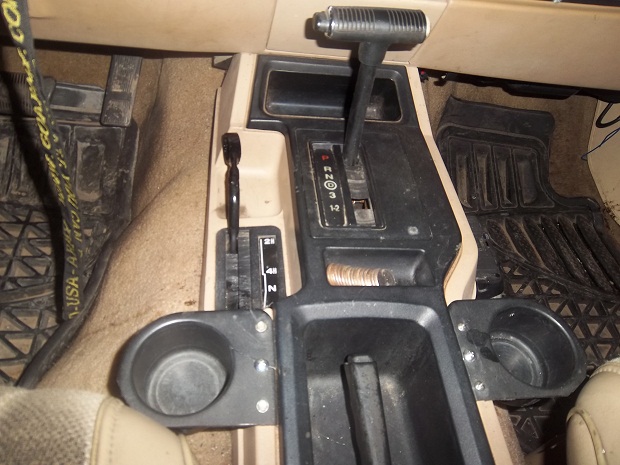

my new TCASE shifter. i did clean up the weld with a grinder and now it looks like it came from the factory.
10-31-2011, 08:07 AM
#2312
::CF Administrator::
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,042
Received 236 Likes
on
188 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
Originally Posted by Agent_Oragnge
my new TCASE shifter. i did clean up the weld with a grinder and now it looks like it came from the factory.
10-31-2011, 11:23 AM
#2313
CF Veteran
Join Date: Jan 2011
Location: Boynton Beach
Posts: 4,267
Likes: 0
Received 3 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 High O
Originally Posted by Agent_Oragnge
my new TCASE shifter. i did clean up the weld with a grinder and now it looks like it came from the factory.
11-03-2011, 10:09 AM
#2314
Member
Join Date: Oct 2011
Location: Appleton, Wisconsin
Posts: 143
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 L
11-03-2011, 03:25 PM
#2317
Member
Join Date: Oct 2010
Location: O'Fallon Missouri
Posts: 186
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 High Output
11-03-2011, 04:20 PM
#2319
CF Veteran
Join Date: Dec 2010
Location: Finger Lakes Region NY
Posts: 1,234
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.o
WOW that is a lot of compliments. THANKS!!! i'll get pics up soon. and to answer your question no it won't get in the way of the console removal. it's actually skinnier than the factoy grip (just a hair though)
11-07-2011, 08:56 PM
#2321
Junior Member
Join Date: Oct 2011
Location: Ontario, Canada
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Can someone please direct me to the homebrew mod on the floor plug that was made.
I remember seeing it when I went through this forum a month ago but the search is not bringing it up.
T-case shifter looks awesome!
I remember seeing it when I went through this forum a month ago but the search is not bringing it up.
T-case shifter looks awesome!
11-07-2011, 11:52 PM
#2323
Member
Join Date: Feb 2011
Location: Indianapolis, IN
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
You might check the "What did you do to your jeep today" thread. I began to look for it there for you, but there are over 1400 pages, so.............if you want, check there. That's probably where you saw it since it parallels with this thread.
11-08-2011, 09:03 AM
#2325
Newbie
Join Date: Sep 2010
Location: Southern NH
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: I6
1st off... Those pillar light mounts look sick. 1st time I've seen them attached under the pillar. Well done.
I didn't take any pics during the process because it was pitch black out through most of the process.
I'll attempt to talk it though...
1st grab the entire rear seatback from a ZJ from the JY. Its 2 or 4 9/16" bolts if I recall correctly.
Peel off all the upholstery. You will see the head rest pillars run through two plastic pieces.
In my pic you see the top of them.
They hold the turn/release buttons.
These 4 plastic pieces mount in two metal brackets spot welded to the seatback pans.
Grind off the welds and remove the brackets from the ZJ pans.
On to Your XJ...
Remove the seat back from the Jeep
Remove the seat covers and foam from the seat back "pan".
The seat fabric has a zipper on the bottom for "easy' removal.
Peel it off and remove the foam bun.
Now lay the ZJ brackets on the pan and take a look at how they fit the pan contours.
You will need to cut off some material to make it lay flat in the pans. (This is where pics would have been good.)
Once positioned drill some holes where you will "spotweld" the brackets on.
Lay the foam on the seatback pan, mark it and carve out a space for the brackets with a steak knife.
When done, stick the 4 plastic headrest holders in in the brackets.
Pull the fabric back on the seats and poke holes where you feel the plastic pieces.
remove the fabric and pull out the plastic headrest mount pieces.
Cut some small holes for the headrest posts where you marked the post locations, install the foam and fabric.
Push the plastic pieces in place. Put the headrest posts in the plastic mounts
When done, the headrest pillars will bottom against the pan and will not fully seat against the seat top.
With some additional fabrication maybe you can do a better job and have them retract fully.
Also you may wish to improve on the forward angle that I have.
You really need to recline your neck back to use the headrests.
My motivation here was to keep my 9 year old's head from snapping off in a crash.
Not so much for comfort. (face it, XJ rear benches are like church pews padded with hammers anyway.)
