Old 02-22-2011, 07:27 PM
  #796
Senior Member

DELCOZRT's Avatar

Join Date: Nov 2009
Location: Delaware county PA
Posts: 834
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Its his jeep and its not really my thing but it looks good.

One tip, Friends don't let friends pull with chains. Spend the loot for some pull rope or slings. Them chains break your gona hurt or kill someone.
DELCOZRT is offline
Like
Old 02-22-2011, 07:42 PM
  #797
Newbie

loosenut's Avatar

Join Date: Feb 2011
Location: calgary
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default
Amen to the chain thing...straps or nothing...too shiny inside I agree but the battery box and the storage is fair fabrication. Keeps a guy off the couch and that's a good thing
loosenut is offline
Like
Old 02-22-2011, 10:13 PM
  #798
Junior Member

nea1183's Avatar

Join Date: Feb 2011
Location: middle of effin no where, WA
Posts: 64
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0l
Default
nice work. I plan on doing something simmilar. but I think I'm gunna run my ladders down the sides, and eventually tie them into an EXO-cage.
nea1183 is offline
Like
Old 02-23-2011, 07:54 AM
  #799
Seasoned Member

Shaggimo's Avatar

Join Date: Oct 2010
Location: cny
Posts: 270
Likes: 0
Received 0 Likes on 0 Posts
Year: 87-99
Model: Cherokee
Engine: 4.0
Default
Couple of mine.

WJ trackbar, breacket needs a little refining, probably make a new one when I move the track bar up.
Name: trackbar-1.jpg Views: 806 Size: 49.2 KB
Name: trackbar.jpg Views: 786 Size: 25.6 KB

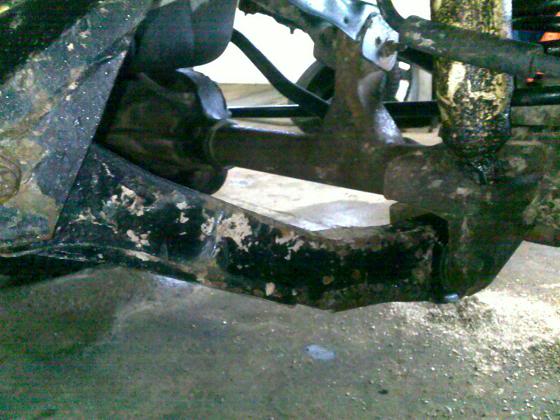

control arms
Name: CONTROLARMS.jpg Views: 796 Size: 43.7 KB
Shaggimo is offline
Like
Old 02-23-2011, 12:41 PM
  #800
Member

Cheap$200Jeep's Avatar

Join Date: Nov 2009
Location: Spokane, WA, USA
Posts: 234
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default Inside Hi-Lift mount
Just a simple mounting bracket for the Hi-Lift and a set of four D-Rings screwed into the floor of the cargo area for straping everything down...

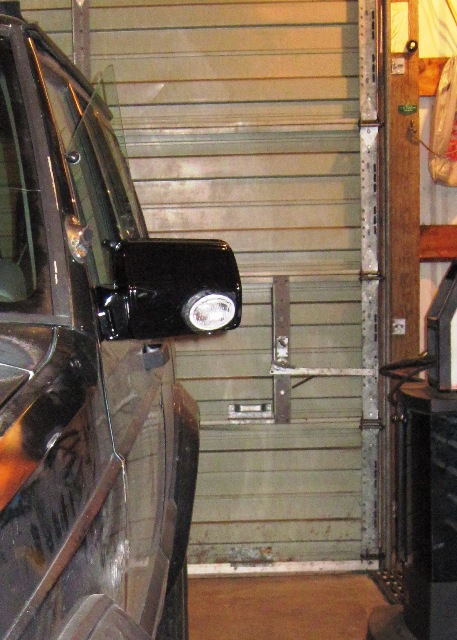

And a set of lights on the mirrors that light up the front wheels and turning arc...
Attached Thumbnails Homebrew Jeep Mods-web1-right.jpg
Attached Images
Cheap$200Jeep is offline
Like
Old 02-23-2011, 12:49 PM
  #801
☠ CF Sheriff ☠

dukie564's Avatar

Join Date: Nov 2009
Location: Aberdeen, MD
Posts: 15,197
Received 17 Likes on 13 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
Originally Posted by Cheap$200Jeep
Just a simple mounting bracket for the Hi-Lift and a set of four D-Rings screwed into the floor of the cargo area for straping everything down...

And a set of lights on the mirrors that light up the front wheels and turning arc...
I hate to burst your bubble, but those mounts for your hi-lift are terrible. There's no way they'll stop the jack from becoming a giant steel projectile aimed at your head in the event of a collision. Best re-think this one if you value your life and those of the people riding with you...


I like the mirror light idea though.
dukie564 is offline
Like
Old 02-23-2011, 01:36 PM
  #802
Member

Cheap$200Jeep's Avatar

Join Date: Nov 2009
Location: Spokane, WA, USA
Posts: 234
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default
Originally Posted by dukie564
I hate to burst your bubble, but those mounts for your hi-lift are terrible. There's no way they'll stop the jack from becoming a giant steel projectile aimed at your head in the event of a collision. Best re-think this one if you value your life and those of the people riding with you...


I like the mirror light idea though.
The base of the jack is totally secured to the deck of the cargo bed so it's not going to become a projectile...
Cheap$200Jeep is offline
Like
Old 02-23-2011, 01:40 PM
  #803
☠ CF Sheriff ☠

dukie564's Avatar

Join Date: Nov 2009
Location: Aberdeen, MD
Posts: 15,197
Received 17 Likes on 13 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
With just that strap? or did you make a mount?
dukie564 is offline
Like
Old 02-23-2011, 01:47 PM
  #804
Member

Cheap$200Jeep's Avatar

Join Date: Nov 2009
Location: Spokane, WA, USA
Posts: 234
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default
Originally Posted by dukie564
With just that strap? or did you make a mount?
An angle iron mount and two tie down, ratcheting straps... sorry, not shown in those old photos...
Cheap$200Jeep is offline
Like
Old 02-23-2011, 01:50 PM
  #805
☠ CF Sheriff ☠

dukie564's Avatar

Join Date: Nov 2009
Location: Aberdeen, MD
Posts: 15,197
Received 17 Likes on 13 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
cool, just wanted to make sure you had it secured well.
dukie564 is offline
Like
Old 02-23-2011, 02:47 PM
  #806
Junior Member

unknowndja's Avatar

Join Date: Sep 2009
Location: Colorado Springs
Posts: 31
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985
Model: Cherokee
Engine: Chevy Small Block
Default
Originally Posted by Cheap$200Jeep
And a set of lights on the mirrors that light up the front wheels and turning arc...
Taking from the FJ and applying them to the XJ...interesting mod!
unknowndja is offline
Like
Old 02-23-2011, 02:50 PM
  #807
CF Veteran

truckntractorhick's Avatar

Join Date: Dec 2009
Location: Harleysville, PA
Posts: 2,091
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L I6 Powertech
Default
more details on this mirror light thing!
truckntractorhick is offline
Like
Old 02-23-2011, 02:52 PM
  #808
Seasoned Member

jeepkid46's Avatar

Join Date: Dec 2010
Location: Payson, UT
Posts: 343
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L
Default
Do they really shin on the tire they look like they dont
jeepkid46 is offline
Like
Old 02-23-2011, 03:32 PM
  #809
Member

Cheap$200Jeep's Avatar

Join Date: Nov 2009
Location: Spokane, WA, USA
Posts: 234
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default Arc Lights
They were just some cheapo lights from the parts store that I thought I would try for this idea. Some high dolar lights would work better but these work good when you're off in the boonies at low speed... The night time photos realy don't do them justice! Here are some better details of how it's done... https://www.cherokeeforum.com/member...t-old-mirrors/
Attached Thumbnails Homebrew Jeep Mods-img_0008-web.jpg
Last edited by Cheap$200Jeep; 02-23-2011 at 03:36 PM.
Cheap$200Jeep is offline
Like
Old 02-23-2011, 03:45 PM
  #810
☠ CF Sheriff ☠

dukie564's Avatar

Join Date: Nov 2009
Location: Aberdeen, MD
Posts: 15,197
Received 17 Likes on 13 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
i really like that. Can't believe i've never seen that done before...

great idea man
dukie564 is offline
