went and got a migmate 115/220v gas or flux core welder the other week, seems to work find but i havent got any serious welds done yet.
#1578
Junior Member
Join Date: Sep 2014
Location: San Diego, CA
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 I6
I have a quick question and it may have been answered already in this thread. If so sorry. When I weld on my jeep, bumper, fenders, sliders, etc do I need to disconnect anything like the battery, ecm, lights, etc?
#1579
Member
Join Date: Oct 2015
Location: Portland, OR
Posts: 109
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1986
Model: Cherokee
Engine: 2.8
I would recommend disconnecting the battery just as a precaution. and make sure you are properly grounded.
#1580
CF Veteran
I've posted in here a little while ago asking for some advice. Basically I have no experience but I'm willing to learn and I'd rather start with something I know will last and is not too cheap so I regret not getting something better.
There's this deal going on right now at my local hardware store, would that be good?
There's this deal going on right now at my local hardware store, would that be good?
#1581
::CF Administrator::

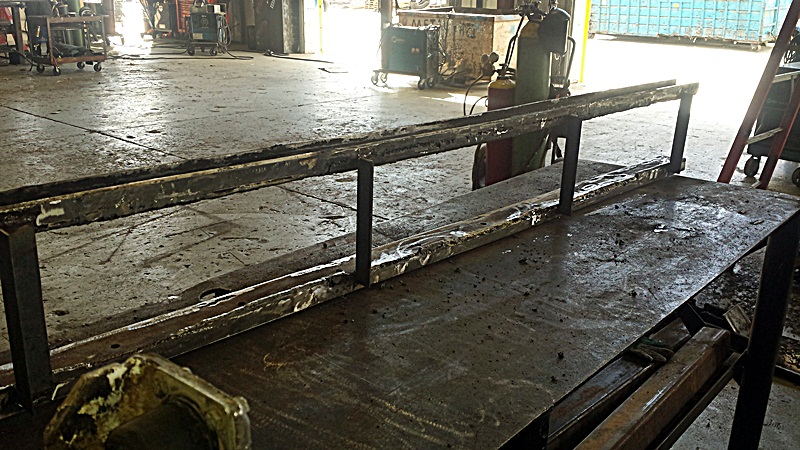

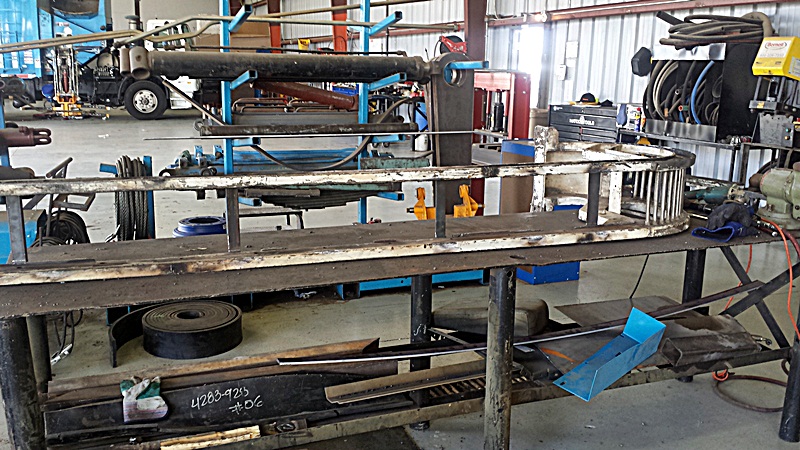

What I've been doing at work the past 2 days...most of these pics were taken yesterday, did all the cutting out of old steel on Monday, yesterday was grinding, grinding, and some grinding, LOL...and starting to repair/replace the bad steel...

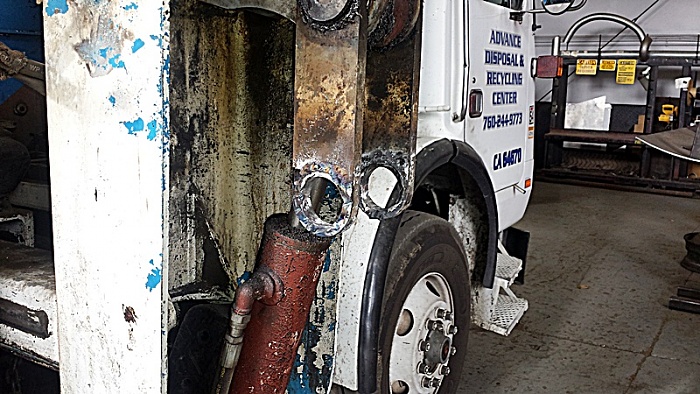

This is a grabber arm for one of the trucks. Reinforced it 2 weeks ago due to cracks in the mounting areas. All the reinforcement I put in with gussets held up great, then the arm decided to split where the pin for the hydraulic ram mounts, LMAO...so made the decision to just rebuild the whole damn thing.
Yeah, pic heavy, LOL...today I'm gonna start the rebuild. More to follow....
This is a grabber arm for one of the trucks. Reinforced it 2 weeks ago due to cracks in the mounting areas. All the reinforcement I put in with gussets held up great, then the arm decided to split where the pin for the hydraulic ram mounts, LMAO...so made the decision to just rebuild the whole damn thing.
Yeah, pic heavy, LOL...today I'm gonna start the rebuild. More to follow....
#1582
Newbie
Join Date: Oct 2013
Location: Near Billings Montana
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Year: 95
Model: Grand Cherokee
Good luck!
#1583
::CF Administrator::
Moar pics from work today...

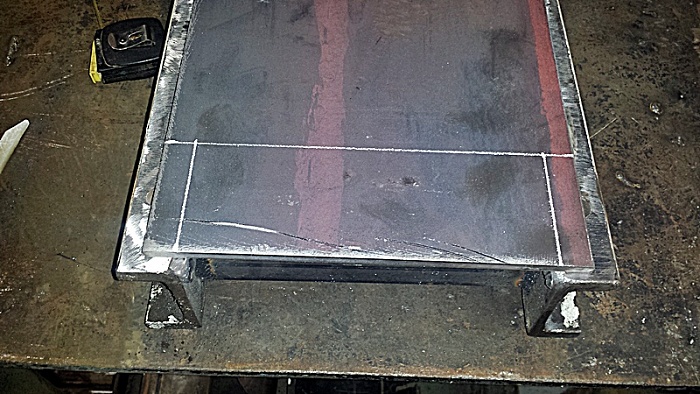

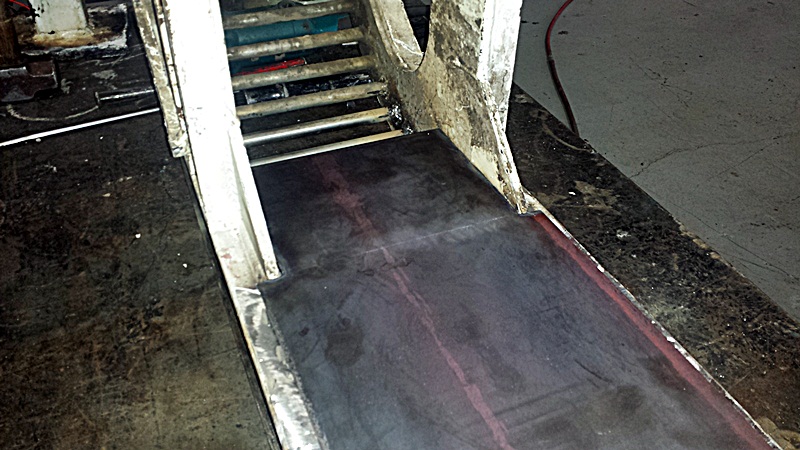

Started reassembly of the arm today...got everything squared up on the table, got more prep and cut work done, and started welding it in...all plate is 3/8", used 7018 rod in the 1/8" size. Main plate was single pass, secondary plate was one root, two cover...gussets and arm tomorrow.
Then, at the end of the day, this shows up:
No rest for the weary, LOL
Started reassembly of the arm today...got everything squared up on the table, got more prep and cut work done, and started welding it in...all plate is 3/8", used 7018 rod in the 1/8" size. Main plate was single pass, secondary plate was one root, two cover...gussets and arm tomorrow.
Then, at the end of the day, this shows up:
No rest for the weary, LOL
#1584
::CF Administrator::
Got the arm installed today, along with some gussets. Everything was done with 3 passes, one root, two cover, in 1/8" 7018. Test fit tomorrow, along with some underside welding, should be good to go, and re-installed on Monday. One less truck out of my hair...now for the next 3 that broke this week...LOL
#1585
::CF Administrator::
Man kinda dead in this thread...lol
Some pics of the wrap up of the arm repair...

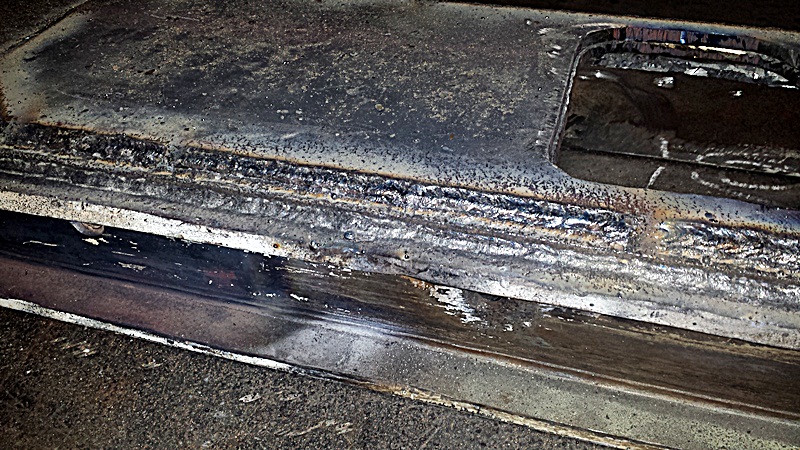

Check out those multiple passes...freakin' beautiful, LOL

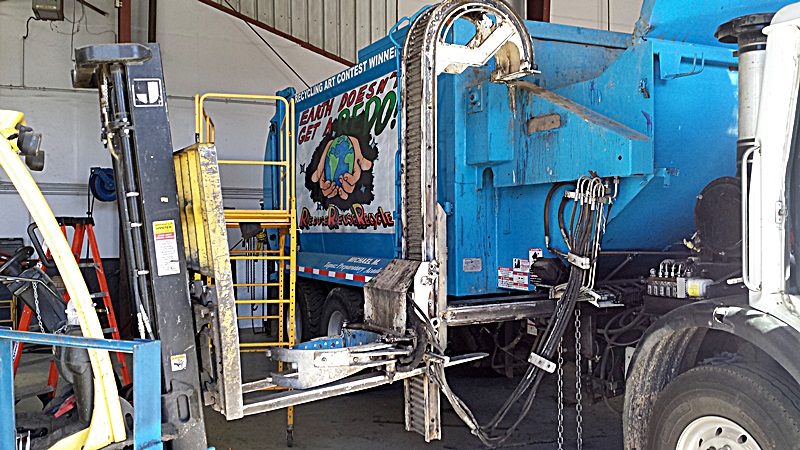

And on to the next...damaged packer I'm working on ATM...

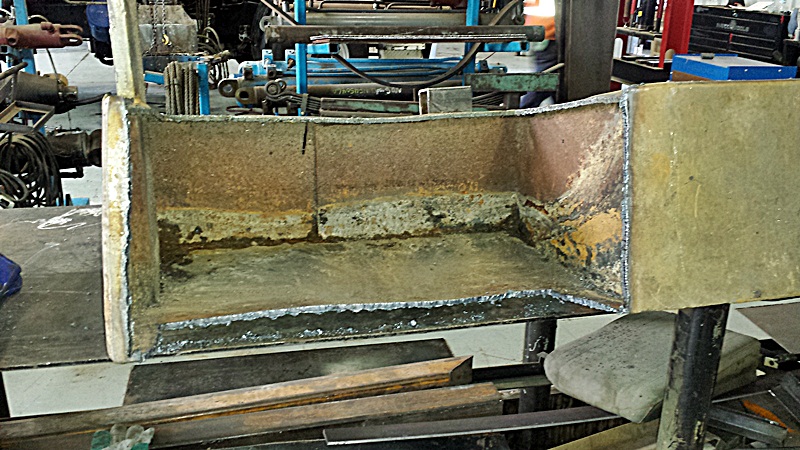

So this is when I hate my job...had to cut out the bad steel. This is what was inside. Yeah, THAT smelled great, LMAO
All pressure washed, and prepped for the new steel, in process...also cutting the hopper floor out of the truck and replacing, but no pics yet...
Some pics of the wrap up of the arm repair...
Check out those multiple passes...freakin' beautiful, LOL
And on to the next...damaged packer I'm working on ATM...
So this is when I hate my job...had to cut out the bad steel. This is what was inside. Yeah, THAT smelled great, LMAO
All pressure washed, and prepped for the new steel, in process...also cutting the hopper floor out of the truck and replacing, but no pics yet...
#1586
Junior Member
Join Date: Feb 2016
Location: Belle Vernon PA
Posts: 87
Likes: 0
Received 1 Like
on
1 Post
Year: 1966
Model: Cherokee
Engine: 4.0 H.O.
anyone got any ideas or plans available for a DIY roof rack? i would need dimensions and everything, i can most likely get material from the shop here and get it all welded up here.
#1587
Senior Member
Join Date: Nov 2014
Location: Lennox/Sioux Falls South Dakota
Posts: 892
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0 liter inline 6
Take measurements on how big you want it to be when your with your jeep, write it down and start thinking some stuff up man, Possibilities are endless but i have seen futon frame roofrack builds and standard square tubing builds. might be somebobody else on here with better ideas, try a forum search
