Old 04-09-2014, 03:23 PM
  #271
CF Veteran

wiggles's Avatar

Join Date: Dec 2010
Location: shawnee,ks
Posts: 9,897
Likes: 0
Received 2 Likes on 2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default
I don't weld docks currently just use them. The welds are part of how they mount.
I'm surprised that most the welds I see hold up to a 5 ton+ lift plus its cargo on a daily basis.
wiggles is offline
Reply Like
Old 04-09-2014, 03:31 PM
  #272
CF Veteran

Atmos's Avatar

Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes on 9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
Default
finally starting to stack some dimes

Name: 875D63D0-B658-4A63-9D24-A79EF36DFCA6_zpstweur2my.jpg Views: 109 Size: 85.1 KB
Atmos is offline
Reply Like
Old 04-09-2014, 04:02 PM
  #273
CF Veteran

94XjSport94's Avatar

Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like on 1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default
I can't get my puddle to stack dimes like that, I always have more dimes in it lol.
94XjSport94 is offline
Reply Like
Old 04-09-2014, 04:10 PM
  #274
CF Veteran

Atmos's Avatar

Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes on 9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
Default
yeah I don't really know why mine come out like that lol. I always push unless going down hill, and I just go back and forth. no C's or anything. I don't even know if it's strong that way but I sure like how it looks
Atmos is offline
Reply Like
Old 04-09-2014, 04:11 PM
  #275
CF Veteran

PurpleToxin505's Avatar

Join Date: Sep 2013
Location: Albuquerque, NM
Posts: 2,820
Likes: 0
Received 4 Likes on 4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default
Originally Posted by 94XjSport94
I can't get my puddle to stack dimes like that, I always have more dimes in it lol.
Originally Posted by Atmos
finally starting to stack some dimes

Mig?
PurpleToxin505 is offline
Reply Like
Old 04-09-2014, 04:16 PM
  #276
CF Veteran

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes on 36 Posts
Year: 1999
Engine: 4.0
Default
Originally Posted by PurpleToxin505
Mig?
yup
XJwonders is offline
Reply Like
Old 04-09-2014, 04:18 PM
  #277
CF Veteran

Atmos's Avatar

Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes on 9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
Default
yeah just a miller 220 something or other
Atmos is offline
Reply Like
Old 04-09-2014, 04:25 PM
  #278
CF Veteran

PurpleToxin505's Avatar

Join Date: Sep 2013
Location: Albuquerque, NM
Posts: 2,820
Likes: 0
Received 4 Likes on 4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default
Originally Posted by Atmos
yeah just a miller 220 something or other
Thats wierd I have to try to gwt more space between my welds

Welding thread!!!!-forumrunner_20140409_152520.jpg
PurpleToxin505 is offline
Reply Like
Old 04-09-2014, 09:35 PM
  #279
CF Veteran

Atmos's Avatar

Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes on 9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
Default
Here's some better ones

Name: 6D350FBC-C0EA-4042-AE3E-35832012E650_zpsgsmxpyzw.jpg Views: 108 Size: 126.0 KB

Name: 15EB1A27-8D0C-4DF4-8244-55B176A560EA_zpsotnhtjhm.jpg Views: 119 Size: 103.7 KB

Name: 577571AF-569F-4385-AAEA-FD5439D3D955_zps8k2c2u3y.jpg Views: 111 Size: 112.8 KB
Last edited by Atmos; 04-09-2014 at 09:39 PM.
Atmos is offline
Reply Like
Old 04-09-2014, 09:36 PM
  #280
CF Veteran

94XjSport94's Avatar

Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like on 1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default
Too bad that axle won't see any real use.
94XjSport94 is offline
Reply Like
Old 04-09-2014, 09:41 PM
  #281
CF Veteran

Atmos's Avatar

Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes on 9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
Default
What axle? That's my buddies TJ rear 8.8 were working on
Atmos is offline
Reply Like
Old 04-10-2014, 08:04 AM
  #282
Member

dirt_biker_guy's Avatar

Join Date: Mar 2012
Location: Ridgecrest Ca.
Posts: 202
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
Default
I thought these turner out pretty decent. Working on a tire carrier in fab class last night.
Attached Thumbnails Welding thread!!!!-image-1652468839.jpg
dirt_biker_guy is offline
Reply Like
Old 04-10-2014, 08:16 AM
  #283
CF Veteran

wiggles's Avatar

Join Date: Dec 2010
Location: shawnee,ks
Posts: 9,897
Likes: 0
Received 2 Likes on 2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default
Wouldn't hurt to tighten that whip up a little, its not holding up a building though so no worries.
wiggles is offline
Reply Like
Old 04-10-2014, 09:42 AM
  #284
CF Veteran

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes on 36 Posts
Year: 1999
Engine: 4.0
Default

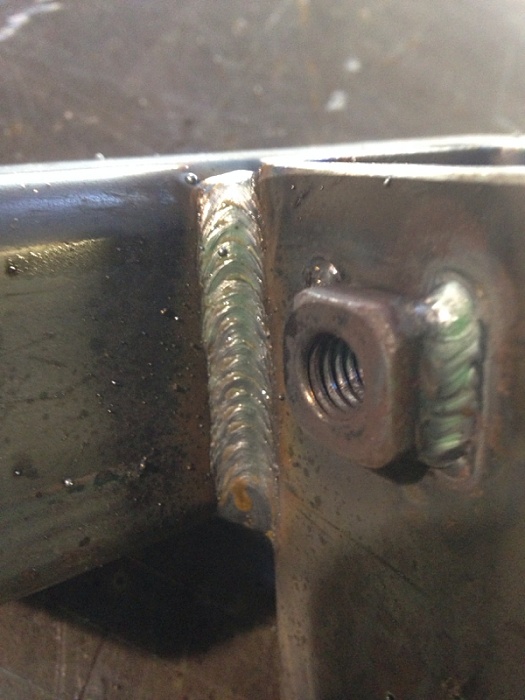

Did this in an hour


The weld nuts are TIG welded and the fillet joint are MIG welded.
Welding thread!!!!-image-716202213.jpg



Welding thread!!!!-image-310218487.jpg
XJwonders is offline
Reply Like
Old 04-10-2014, 09:42 AM
  #285
CF Veteran

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes on 36 Posts
Year: 1999
Engine: 4.0
Default
Made this to hold my mig gun on the table few years ago.

It's really helpful

Welding thread!!!!-image-400953672.jpg



Welding thread!!!!-image-1086214393.jpg
XJwonders is offline
Reply Like
