Cherokee Chat General non-tech Cherokee chat
XJ/MJ/ZJ/WJ

Aux lights help

Thread Tools

Search this Thread

Old 05-30-2012 | 10:23 PM
  #1
9294Forrest's Avatar
Thread Starter
CF Veteran

Joined: May 2012
Posts: 1,004
Likes: 0
Model: Cherokee
Default Aux lights help

What's the easiest way to power your offroad lights, where's the easiest place to run the wires when mounting on the bumper, then how do you mount the switch??
Old 05-30-2012 | 10:32 PM
  #2
Jeepxj1234's Avatar
CF Veteran

Joined: Sep 2010
Posts: 1,843
Likes: 0
From: NC
Year: 1998
Model: Cherokee
Engine: 4.0 L
Default

Battery or fuse box, use a relay, use zip ties to secure the wires in the engine bay, mount the switch by cutting a hole somewhere near all your ac and radio controls (or wherever you want), look up wiring diagrams using google.
Old 05-30-2012 | 10:34 PM
  #3
caged's Avatar
CF Veteran

Joined: Nov 2008
Posts: 7,874
Likes: 98
From: Northern Ontario, Canada
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

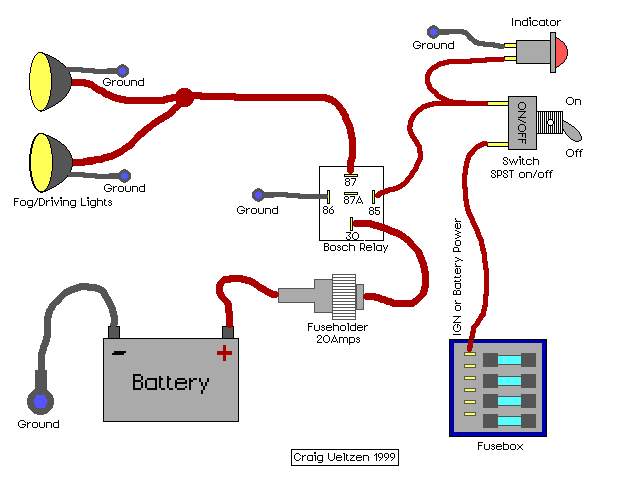

wire them to the battery, use a relay and inline fuse.

this is one way with an indicator light to tell you they are on.
Attached Images
Old 05-30-2012 | 10:37 PM
  #4
9294Forrest's Avatar
Thread Starter
CF Veteran

Joined: May 2012
Posts: 1,004
Likes: 0
Model: Cherokee
Default

I got the wireing, but like what's the process ....easy way....to get the wires from the engine bay to your dash board,?
Old 05-30-2012 | 10:42 PM
  #5
Jeepxj1234's Avatar
CF Veteran

Joined: Sep 2010
Posts: 1,843
Likes: 0
From: NC
Year: 1998
Model: Cherokee
Engine: 4.0 L
Default

Theres a rubber opening in the firewall near where to gas and brake pedals are that I use to run wires to the battery.
Old 05-30-2012 | 10:46 PM
  #6
9294Forrest's Avatar
Thread Starter
CF Veteran

Joined: May 2012
Posts: 1,004
Likes: 0
Model: Cherokee
Default

Ok and where on the fusebox would I wire it too, wich one is open?
Old 05-30-2012 | 10:47 PM
  #7
Jeepxj1234's Avatar
CF Veteran

Joined: Sep 2010
Posts: 1,843
Likes: 0
From: NC
Year: 1998
Model: Cherokee
Engine: 4.0 L
Default

Google it. I have mine running directly to the battery.
