This is what I'm currently working on...
(not to scale)(measurements in inches, may not be exact. Still in the concept stages)

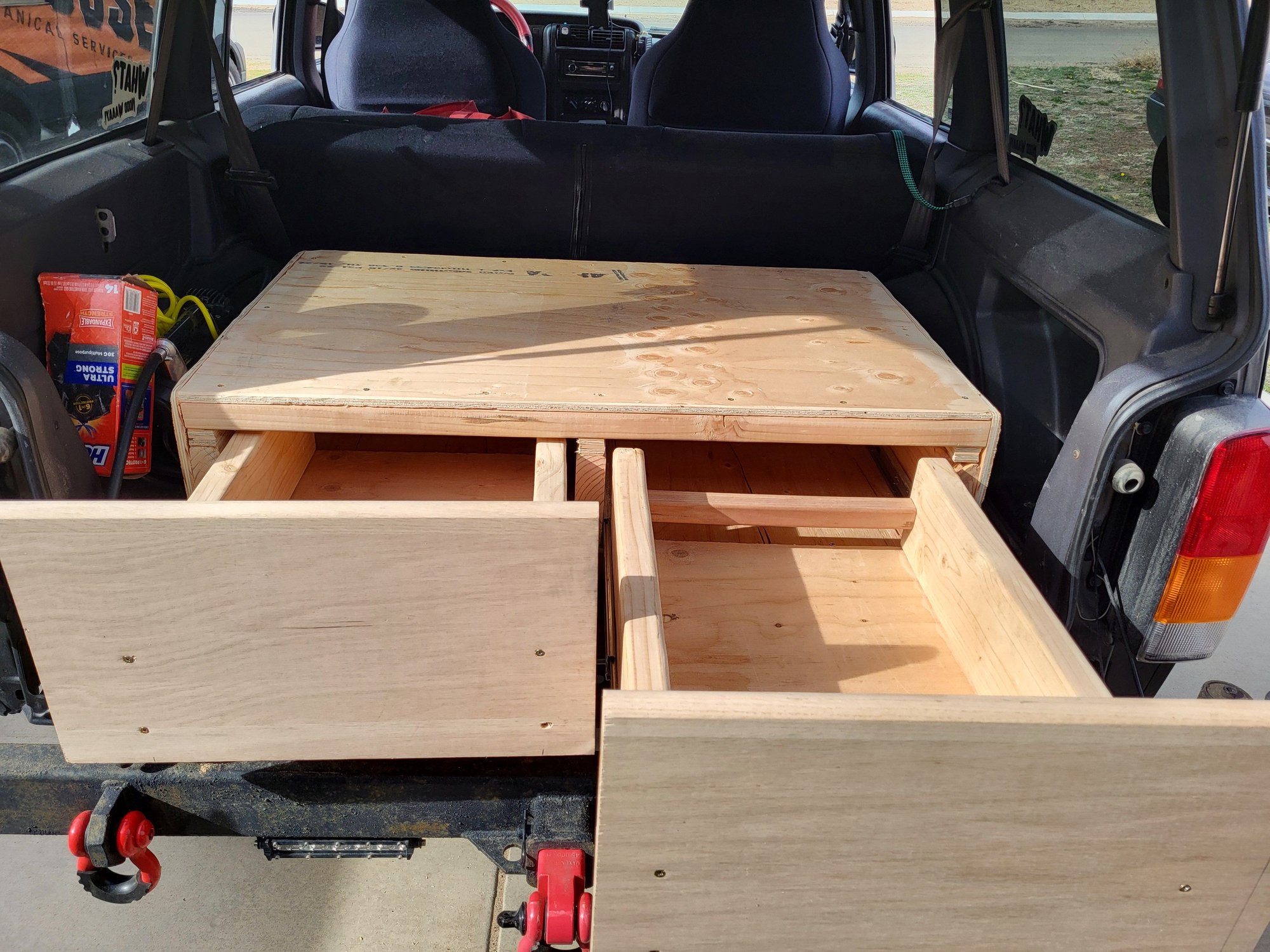

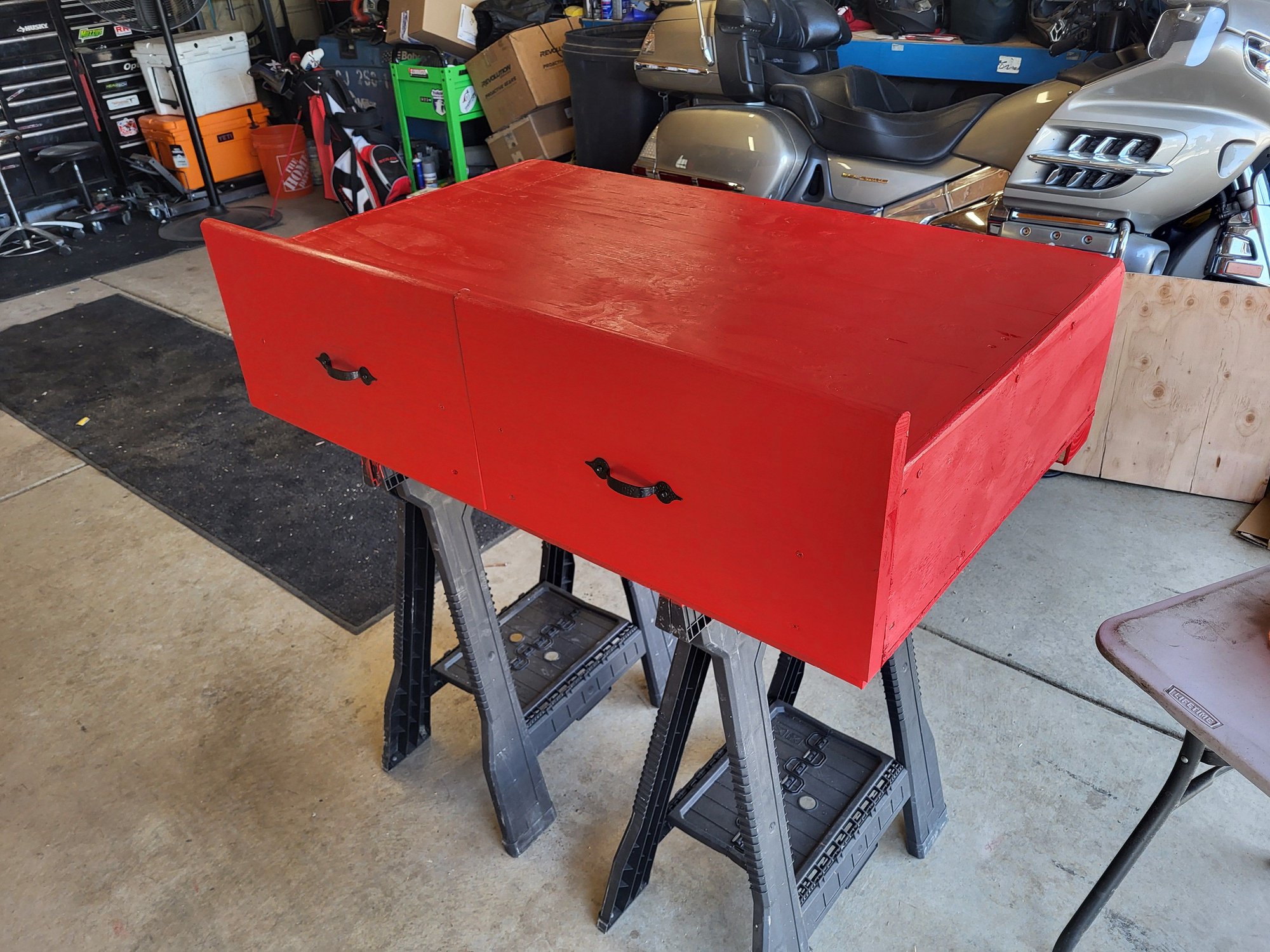

Using some OSB board, plywood, or otherwise I will fabricate a very simple 2 part box structure. The two boxes will be tied together. It will house several compartments. The exterior will have grey, exterior grade carpet. This will proved a smoother look, edges, and functionality. The lid will have 1" of overhang, so I can pull out the cargo box, and use it as a part time workbench. It will then swivel back around, forming around the pass. side wheel well. The scrap wood will be used to form the compartments, via dividers.
Four hinges will be mounted on the back, so it can open, as well as a prop to keep it open. One latch will be at the front, to keep it closed. I was thinking foam rubber padding can be placed an two compartments, they will be cut to size and fit both; metric, and SAE sockets. I haven't quite figured out the rest...
(not to scale)(measurements in inches, may not be exact. Still in the concept stages)
Using some OSB board, plywood, or otherwise I will fabricate a very simple 2 part box structure. The two boxes will be tied together. It will house several compartments. The exterior will have grey, exterior grade carpet. This will proved a smoother look, edges, and functionality. The lid will have 1" of overhang, so I can pull out the cargo box, and use it as a part time workbench. It will then swivel back around, forming around the pass. side wheel well. The scrap wood will be used to form the compartments, via dividers.
Four hinges will be mounted on the back, so it can open, as well as a prop to keep it open. One latch will be at the front, to keep it closed. I was thinking foam rubber padding can be placed an two compartments, they will be cut to size and fit both; metric, and SAE sockets. I haven't quite figured out the rest...
Last edited by KJamesJR; 06-10-2012 at 02:18 AM.
06-10-2012, 10:06 AM
#34
Seasoned Member
Join Date: Jul 2011
Location: Camden NJ
Posts: 287
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
i dig those stroage racks cool stuff, im leaning more towards a flase floor with a few opens slots to store my recovery stuff, then i plan to carpet the top
