Electric fan setups
#17
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
Thanks for that bit-o-info. That will be my next project.
#19
CF Veteran
Join Date: Jul 2012
Location: San Antonio, TX
Posts: 4,104
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
my setup:
the fan:
96 volvo fan - same as taurus fan but easily removed from the main shroud , makes it very easy to fab a shroud or adapt to your stock shroud(which is what i did) these seem to be more plentiful than the 3.8 taurus fan
Fan Control:
temp switch - Beck Arnley 201-1266 Thermo Fan Switch(i bought this new) switches on low at 205 and high at 215, dont get much more perfect than that
volvo fan controlor - runs the high an low circuits for the fan and is a factory unit, can be had with all the wiring and plugs that go with it for a few bucks at the junk yard
-early ninties Saab 900 thermo switch t-housing from upper radiator hose(this was not easy to find), has the correct thread (M22x1.5 i believe) for the beck-arenly switch and is the right diameter for the xj upper rad hose
-pig tail for the thermo switch from an ancient VW or Audi( the one i bought was too corroded to use so i ended up spading each wire to each terminal on the thermo-switch instead of the fancy looking plug
heres the page on my build thread where i did it with a couple pics
https://www.cherokeeforum.com/f46/pr...61909/index79/
the fan:
96 volvo fan - same as taurus fan but easily removed from the main shroud , makes it very easy to fab a shroud or adapt to your stock shroud(which is what i did) these seem to be more plentiful than the 3.8 taurus fan
Fan Control:
temp switch - Beck Arnley 201-1266 Thermo Fan Switch(i bought this new) switches on low at 205 and high at 215, dont get much more perfect than that
volvo fan controlor - runs the high an low circuits for the fan and is a factory unit, can be had with all the wiring and plugs that go with it for a few bucks at the junk yard
-early ninties Saab 900 thermo switch t-housing from upper radiator hose(this was not easy to find), has the correct thread (M22x1.5 i believe) for the beck-arenly switch and is the right diameter for the xj upper rad hose
-pig tail for the thermo switch from an ancient VW or Audi( the one i bought was too corroded to use so i ended up spading each wire to each terminal on the thermo-switch instead of the fancy looking plug
heres the page on my build thread where i did it with a couple pics
https://www.cherokeeforum.com/f46/pr...61909/index79/
#21
Junior Member
Join Date: Jan 2012
Location: N. Chesterfield, VA
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Grand Cherokee
Engine: 4.0 inline 6
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
This is in my Camaro
Taurus fan mounted on radiator
![Name: 100_1753.jpg
Views: 301
Size: 121.9 KB](https://www.cherokeeforum.com/attachments/f59/316139d1501230580-electric-fan-setups-100_1753.jpg)
BMW 2 temp switch mounted in radiator, soldered bung in side of radiator
![Name: 100_1746.jpg
Views: 111
Size: 110.0 KB](https://www.cherokeeforum.com/attachments/f59/316140d1501230580-electric-fan-setups-100_1746.jpg)
Volvo Two speed fan relay mounted on S10 pickup relay bracket
![Name: 100_2137.jpg
Views: 143
Size: 168.0 KB](https://www.cherokeeforum.com/attachments/f59/316141d1501230580-electric-fan-setups-100_2137.jpg)
Manuel overide switch with LED lights for high and low. Power socket in place
of lighter
![Name: 100_2146.jpg
Views: 130
Size: 128.9 KB](https://www.cherokeeforum.com/attachments/f59/316142d1501230580-electric-fan-setups-100_2146.jpg)
link to how-to http://www.nastyz28.com/forum/showthread.php?t=200028
Taurus fan mounted on radiator
![Name: 100_1753.jpg
Views: 301
Size: 121.9 KB](https://www.cherokeeforum.com/attachments/f59/316139d1501230580-electric-fan-setups-100_1753.jpg)
BMW 2 temp switch mounted in radiator, soldered bung in side of radiator
![Name: 100_1746.jpg
Views: 111
Size: 110.0 KB](https://www.cherokeeforum.com/attachments/f59/316140d1501230580-electric-fan-setups-100_1746.jpg)
Volvo Two speed fan relay mounted on S10 pickup relay bracket
![Name: 100_2137.jpg
Views: 143
Size: 168.0 KB](https://www.cherokeeforum.com/attachments/f59/316141d1501230580-electric-fan-setups-100_2137.jpg)

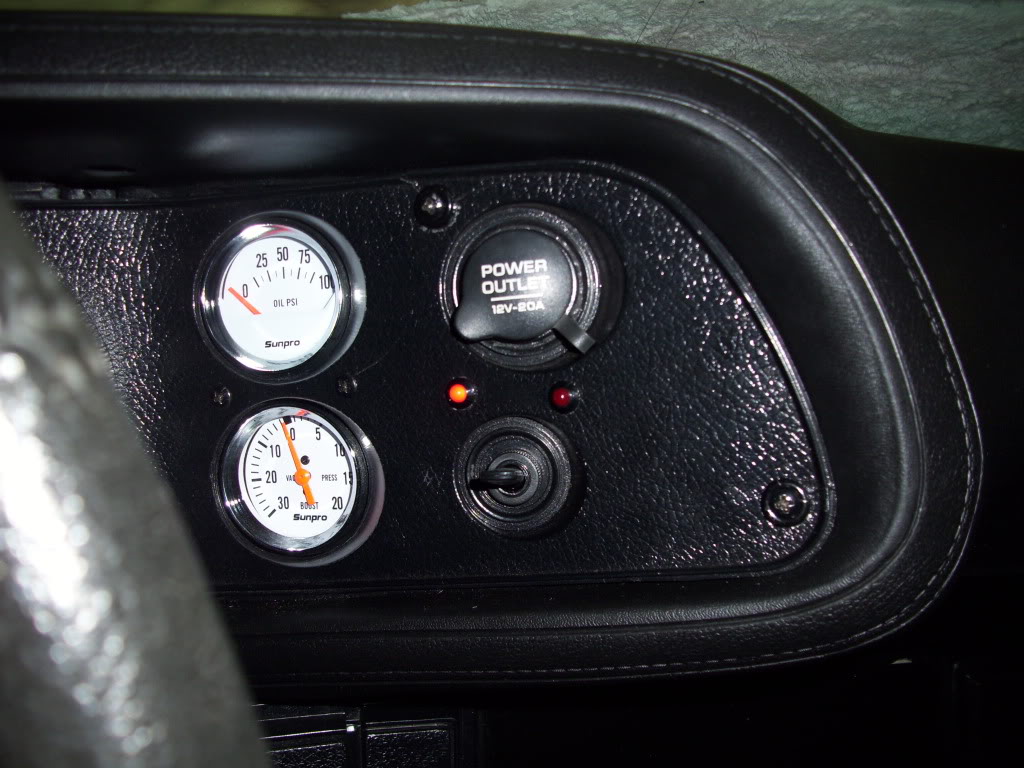

Manuel overide switch with LED lights for high and low. Power socket in place
of lighter
![Name: 100_2146.jpg
Views: 130
Size: 128.9 KB](https://www.cherokeeforum.com/attachments/f59/316142d1501230580-electric-fan-setups-100_2146.jpg)
link to how-to http://www.nastyz28.com/forum/showthread.php?t=200028
