whille i'm at it ....
#46
Seasoned Member
Join Date: Jul 2010
Location: Mass.
Posts: 320
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
May be cheaper just to buy one of these, not as much fun as building it though. Independent suspension, portal axles these things are the *****.
http://www.pinzgauer.com/pinzgauer.php
http://www.pinzgauer.com/pinzgauer.php
Last edited by leecarr; 01-27-2012 at 04:28 PM. Reason: ommision
#47
Senior Member
Thread Starter
Join Date: Sep 2011
Location: Burington Washington
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4L Renix
May be cheaper just to buy one of these, not as much fun as building it though. Independent suspension, portal axles these things are the *****.
http://www.pinzgauer.com/pinzgauer.php
http://www.pinzgauer.com/pinzgauer.php
the volvo stuff would work nice, but i'm in the U.S and we dont have those bad *** volvos here to take the parts out of.
i'd like to find some thing here. like a d 7 a 1/2 t-case and rung multiple drive lines. i plan to lift to 8 inches. that may allow for the other drive line.
i need to find out what the maximum pinion angle i can have on high pinion axles. if it will work that way its in my budget, rock-wells are not. no way the woman will let me spend that kind of money with out having to save for a year first ugh i hate it .
so lets search out some deuce t-cases or ones configured for dual rear out puts. the deuce unit a be a bit heavier than i'd like tho.
#48
Originally Posted by leecarr
That goofy banjo thing is what I saw in a salvage yard, what is the name of the Swiss military vehicle, they come either 4 or 6 wheel. Ugly boxy looking thing but way cool.
#52
CF Veteran
Join Date: Apr 2008
Location: Wisconsin
Posts: 3,569
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Cleaned this thread up guys. If you don't like the thread, just leave it alone. If anyone keeps up with the type of comments that I just got rid of, I will start giving out infractions. If you have questions or comments about the deleted comments, just PM me.
#53
Senior Member
Thread Starter
Join Date: Sep 2011
Location: Burington Washington
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4L Renix
i want to run 35's since thats what i have now. i am going to measure the jeep tomorrow.
i will need to stretch quite a bit. more than the 10 inches i was planing on.
i also need to get an idea of how much more space will i need to turn around. on a normal gravel road if i need too. all tho i have no fears of driving in reverse. but i dont want to have to do this every time :
no offense rossie
i will need to stretch quite a bit. more than the 10 inches i was planing on.
i also need to get an idea of how much more space will i need to turn around. on a normal gravel road if i need too. all tho i have no fears of driving in reverse. but i dont want to have to do this every time :
#54
Newbie
Join Date: Nov 2011
Location: athens ohio
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0l

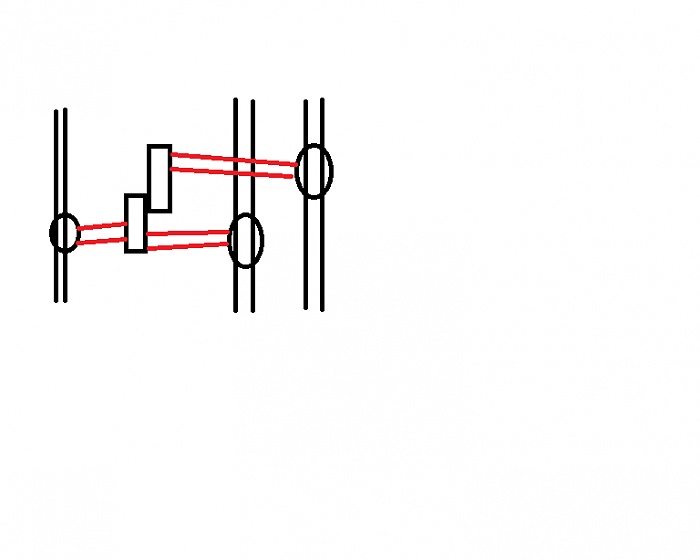

i think u could use front axles for all three axles and do it. use a driver side pumpkin up front and in the back get full width driver and passenger pumpkins and cut them down and turn them into rear axles with 2 different drive shafts. like this
#55
Senior Member
Thread Starter
Join Date: Sep 2011
Location: Burington Washington
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4L Renix
i have one front axle and one rear. that was realy why i thought about doing this. i form what i tamek form my jeep i need to stretch 2ft , i need to see if Washington state law will let me do that. if it has to be a trailer queen because of that. then i want to build my own 6x6 buggy. steel frame with aluminum body panels. Heat , wipers, lights, and a good spot to sleep. i'm not throwing in the towel on the jeep yet.
#57
Senior Member
Thread Starter
Join Date: Sep 2011
Location: Burington Washington
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4L Renix
can one or some of you help me decipher what this guy did to the np200/205 fo dual rear out puts Pg#2
http://www.4btswaps.com/forum/showth...6x6-M715/page2
this guys rig is insane .
http://www.4btswaps.com/forum/showth...6x6-M715/page2
this guys rig is insane .
#58
Senior Member
Thread Starter
Join Date: Sep 2011
Location: Burington Washington
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4L Renix
i so measured my jeep from the back of my door to my tail light. its 62 inches. i need to stretch to "82" inches. my 35's are 34 inches OD ='s 68. i'd like 4 inches between them brings me to 72 inches from front of forward center tire to rear of back axle tire.
now i would probably truss the axles. that would allow me to stagger one set of my rear leafs inboard of the other set. which would allow one axle to flex easier . so that should help the ride quality . also i can change the shock angles to be more suited to ride quality rather than stabilizing the body. which shouldn't really be a problem considering there's going to be another set of leafs and another set of shocks.
now the question is i need to figure how to mount my leaf springs. i figure leafs because there cheap and it keeps the sus geometry simple.
i need to look up the lengths of the xj leaf springs and location of the center pin. to help figure out how & ware to put the springs.
any one have some thoughts?
now i would probably truss the axles. that would allow me to stagger one set of my rear leafs inboard of the other set. which would allow one axle to flex easier . so that should help the ride quality . also i can change the shock angles to be more suited to ride quality rather than stabilizing the body. which shouldn't really be a problem considering there's going to be another set of leafs and another set of shocks.
now the question is i need to figure how to mount my leaf springs. i figure leafs because there cheap and it keeps the sus geometry simple.
i need to look up the lengths of the xj leaf springs and location of the center pin. to help figure out how & ware to put the springs.
any one have some thoughts?
#59
Seasoned Member
Join Date: Jul 2010
Location: Mass.
Posts: 320
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Not sure about the gearing but could you put a divorced 205 behind your existing t case backwards? If it is strictly off road you could make a dual out put drive with some rugged flange bearings, double row roller chain and some sprockets and shafts (it stands up inside a skid steer loader with serious abuse).
Last edited by leecarr; 01-28-2012 at 04:10 PM. Reason: ommision
#60
Senior Member
Thread Starter
Join Date: Sep 2011
Location: Burington Washington
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4L Renix
thats some thing i saw on another forum. if i wanted to go that route couldn't i just turn a 231 around backward and run it that way and leave it in the high gear, just switch it from 2-4wd in the high range to engage my rear axle?
and question if my axles are all the same gear. and i run only my 1st t-case in low that should keep all the axle in the same gear. high in the t-case is 1-1 . if i switch the main case to low, then i would turn all my axle in my low range with the divorced trans always in high gear.
