Windshield wiper question
03-21-2015, 12:36 AM
#1
Junior Member
Thread Starter
Join Date: Aug 2014
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Windshield wiper question
So I have a 94 XJ. The base model with no electric windows or anything. I don't even have a rear window wiper. On my windshield wiper controls it just has regular speed and faster. No delay mode or anything. What I'm curious is that is this straight from factory? Or did one of the past owners put this lever in? Is there a way to get one with a delayed option? Thanks for the help.
03-21-2015, 04:25 AM
#2
Senior Member
Join Date: Jun 2011
Location: Cali
Posts: 588
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1993
Model: Grand Cherokee
Engine: 5.2
I used to see kits in all the auto stores--when cars were cheap(a--) and that was considered something "fancy"
Most of them looked janky as hell and had a wire running to a little control module you'd bolt on to the lever for your wipers/etc.
Found this online though-looks a lot better. I bet some stores still might have the cheesy kits though
.
Of course I'm sure someone will be along to say just pull one off a junk yard cherokee
Most of them looked janky as hell and had a wire running to a little control module you'd bolt on to the lever for your wipers/etc.
Found this online though-looks a lot better. I bet some stores still might have the cheesy kits though
.
Of course I'm sure someone will be along to say just pull one off a junk yard cherokee
03-21-2015, 04:33 AM
#3
CF Veteran
Join Date: Apr 2012
Location: Essex England
Posts: 2,218
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 2.5 td
I used to see kits in all the auto stores--when cars were cheap(a--) and that was considered something "fancy"
Most of them looked janky as hell and had a wire running to a little control module you'd bolt on to the lever for your wipers/etc.
Found this online though-looks a lot better. I bet some stores still might have the cheesy kits though
Amazon.com: HELLA 001871041 12V Intermittent Washer and Wiper Control Unit: Automotive
.
Of course I'm sure someone will be along to say just pull one off a junk yard cherokee
Most of them looked janky as hell and had a wire running to a little control module you'd bolt on to the lever for your wipers/etc.
Found this online though-looks a lot better. I bet some stores still might have the cheesy kits though
Amazon.com: HELLA 001871041 12V Intermittent Washer and Wiper Control Unit: Automotive
.
Of course I'm sure someone will be along to say just pull one off a junk yard cherokee
03-21-2015, 05:02 AM
#4
Junior Member
Thread Starter
Join Date: Aug 2014
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
I used to see kits in all the auto stores--when cars were cheap(a--) and that was considered something "fancy" Most of them looked janky as hell and had a wire running to a little control module you'd bolt on to the lever for your wipers/etc. Found this online though-looks a lot better. I bet some stores still might have the cheesy kits though Video Link: http://www.amazon.com/HELLA-001871041-Intermittent-Washer-Control/dp/B000VU8RDG/ . Of course I'm sure someone will be along to say just pull one off a junk yard cherokee
Last edited by Navy_Jeep; 03-21-2015 at 05:33 AM.
03-21-2015, 08:40 AM
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,554 Likes
on
1,260 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
03-21-2015, 09:39 AM
#6
Senior Member
Join Date: Jun 2011
Location: Cali
Posts: 588
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1993
Model: Grand Cherokee
Engine: 5.2
The control units I saw bolted on the the lever...with teeny tiny bolts. You'll have to pull out or by pass the controller somehow. I'm sure most of those kits have instructions, or someone will know how to do a full swap from XJ with the delay/slow speeds
03-21-2015, 01:00 PM
#7
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 21 Likes
on
20 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter

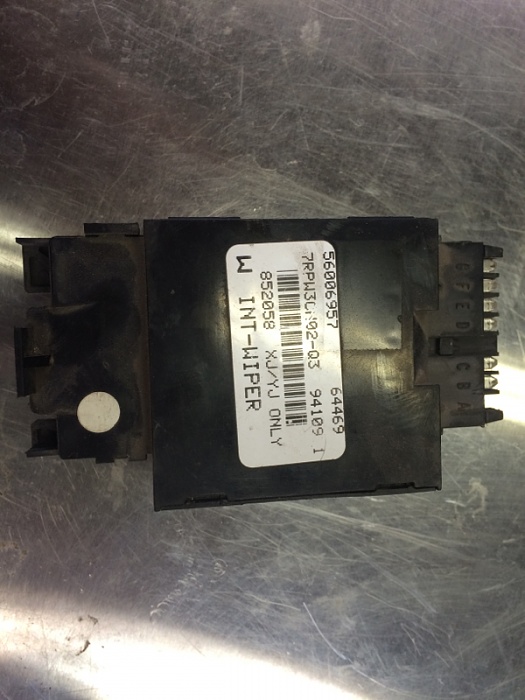

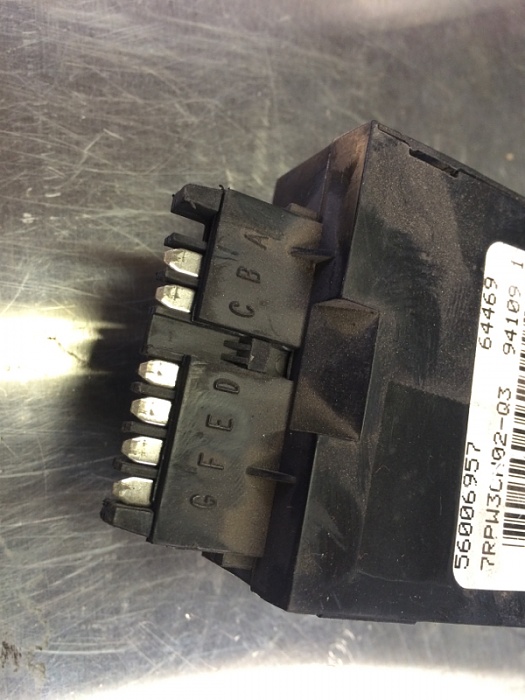

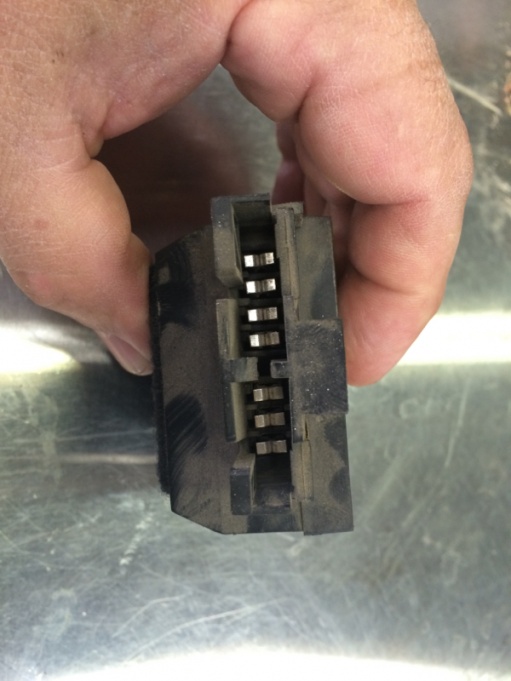

There is a windshield wiper delay module that plugs in between the steering column harness and main harness, and you will need the multifunction switch.
Trending Topics
03-23-2015, 03:39 PM
#10
Junior Member
Thread Starter
Join Date: Aug 2014
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
So today I bought a couple of the modules just in case ones bad because I saw that they don't always works right and I got a full lever/turn/signal/ brights that has the delay option on it. I needed it anyway because mine is broken inside somewhere and loose as hell. Is that all I'll need?
03-24-2015, 04:28 PM
#11
Junior Member
Thread Starter
Join Date: Aug 2014
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Never mind about my last post. I plugged everything in and it works!! Now I just gotta take my steering column apart to install the new lever. Lol. Thanks for all the help everybody.
03-24-2015, 04:36 PM
#12
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,554 Likes
on
1,260 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
