All Lift & Tire questions go here!!!
Senior Member
Join Date: Feb 2013
Location: Kansas City, MO
Posts: 812
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Hopefully a few more people will pitch in on this before I have to pull the trigger. I really haven't had much luck searching for shackle angles with the stock setup and 3" leafs...
Senior Member
Join Date: Oct 2012
Location: Parlin NJ/Staten Island NY
Posts: 857
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Thanks for the pic. Rusty's is def on my radar. I can get RE for $235 shipped, Rusty's $315 shipped, and Zone for $305 (incl tax) at the local 4x4 shop. I've really wanted RE at 1st, but wasn't sure about their shackle angle and everyone says they actually net about 4.5" of lift. If thats the case I'll prob have to run an SYE due to having a 242 TC...
Hopefully a few more people will pitch in on this before I have to pull the trigger. I really haven't had much luck searching for shackle angles with the stock setup and 3" leafs...
Hopefully a few more people will pitch in on this before I have to pull the trigger. I really haven't had much luck searching for shackle angles with the stock setup and 3" leafs...
Senior Member
Join Date: Feb 2013
Location: Kansas City, MO
Posts: 812
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Since the 3" coils and shocks are free, I won't be wasting any $ doing it this way, and it'll allow me to run it as my DD as I add the costly bits like adjustable control arms etc and work out vibe issues.
Senior Member
Join Date: Oct 2012
Location: Parlin NJ/Staten Island NY
Posts: 857
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
I know, I just don't want to run them at this point. I just want a 3" leaf that will mount up. I got coils and shocks for free, so I want to get it at 3". Then I can start working on the vibes I expect from the 242TC and slowly start adding the nice components that will be necessary to run a clean 4.5" lift later. Once I get everything straight all I will need is 4.5" coils, shocks, and a lift shackle/relo bracket. At that time I would put the SYE on.
Since the 3" coils and shocks are free, I won't be wasting any $ doing it this way, and it'll allow me to run it as my DD as I add the costly bits like adjustable control arms etc and work out vibe issues.
Since the 3" coils and shocks are free, I won't be wasting any $ doing it this way, and it'll allow me to run it as my DD as I add the costly bits like adjustable control arms etc and work out vibe issues.
Senior Member
Join Date: Feb 2013
Location: Kansas City, MO
Posts: 812
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
It's really a tough call, everyone's XJ is ATLEAST 12 years old, they all take a little differently to lifts. Plus everyone wrenches and takes photos a little differently. most any 3" leaf pack will net you at least a decent shackle angle, it's the higher lifts that become a problem.
I am just trying to be proactive so I don't end up in the same situation.
Senior Member
Join Date: Feb 2013
Location: Kansas City, MO
Posts: 812
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
With free coils & shocks, all I need is leafs, adj trackbar, and adj quick discos. That will allow room in the budget for new u-joints, rod-ends, ball joints, & bushings as needed.
Did you replace the joints on the front DS when you lifted or just the rear?
Senior Member
Join Date: Oct 2012
Location: Parlin NJ/Staten Island NY
Posts: 857
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Thats encouraging. 242's don't get much discussion either. I thought about swapping the 231 off my parts jeep (hit a deer, bought it back after insurance totalled it) but the full time 4wd is really nice when letting my wife drive it in the winter...
With free coils & shocks, all I need is leafs, adj trackbar, and adj quick discos. That will allow room in the budget for new u-joints, rod-ends, ball joints, & bushings as needed.
Did you replace the joints on the front DS when you lifted or just the rear?
With free coils & shocks, all I need is leafs, adj trackbar, and adj quick discos. That will allow room in the budget for new u-joints, rod-ends, ball joints, & bushings as needed.
Did you replace the joints on the front DS when you lifted or just the rear?
Junior Member
Join Date: Jul 2010
Location: Canton, MI
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
So I have been brain storming my next moves with the jeep. So far I have come up with the following parts for my lift.
BDS longarms-$1000 (Shaun)
IRO Double shear trackbar-$200 (IRO)
RE 4.5" leaf spring-$280 (Serious Offroad)
RE 5.5" coil springs-$90 (Serious Offroad)
SYE & Driveshaft -$500 (Rustys)
Brakelines (unsure)
Shocks (unsure)
If there is anything else people can think of or wish to comment on I'm open to suggestions. Some of my current parts will be reused like extended shackle and coil spacer. I'm also thinking about getting a shackle relocation kit.
BDS longarms-$1000 (Shaun)
IRO Double shear trackbar-$200 (IRO)
RE 4.5" leaf spring-$280 (Serious Offroad)
RE 5.5" coil springs-$90 (Serious Offroad)
SYE & Driveshaft -$500 (Rustys)
Brakelines (unsure)
Shocks (unsure)
If there is anything else people can think of or wish to comment on I'm open to suggestions. Some of my current parts will be reused like extended shackle and coil spacer. I'm also thinking about getting a shackle relocation kit.
Newbie
Join Date: Feb 2013
Location: Lake County
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
Year: 95
Model: Grand Cherokee
Engine: 4.0L
Control arm help

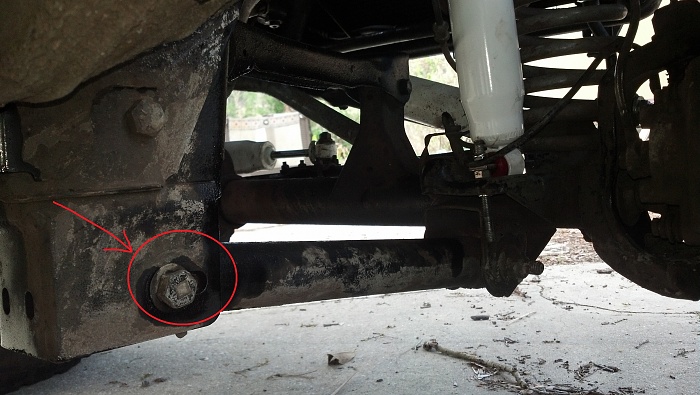

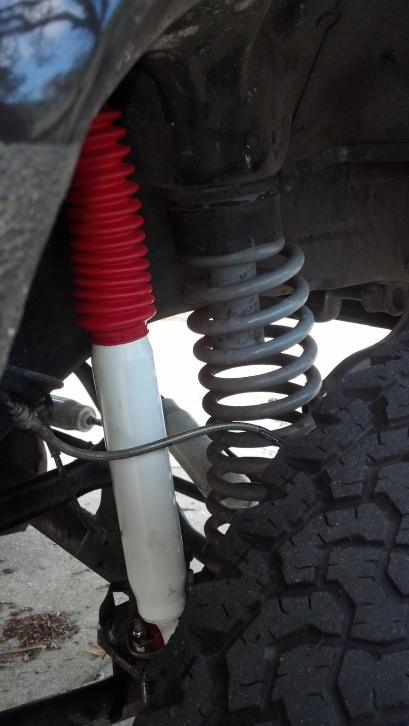

Okay. Hopefull this isn't too long-winded. I posted this question on another thread but I'm looking for more in-depth answers, so I figured a topic-specific thread woudl be better. Okay. So, we were about to replace the spring spacers with 3 inch spacers when we noticed that those springs are tilted. Another CF user said that the axle seems to be tilted. I took another picture of the control arm connected to the drop down bracket. We were told to get an adjustable LCA, but I'm thinking that if we slide that bolt forward and tack weld it, it woudl yeild the same results. I'm not sure what size lift it has for certain cause we bought it this way and I'm not sure where to measure, but it's 4.5 inches from bolt to bolt on to drop down bracket. Remember we're adding the 3 inch spacers too. It does have stock UCA. Do we need to replace the rear LCA as well with extended ones? I hope all that makes sense.
Seasoned Member
Join Date: Jul 2012
Location: Western, Pa (5 mins away from ohio border)
Posts: 405
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: straight 6 (4.0L)
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Seasoned Member
Join Date: Jul 2012
Location: Western, Pa (5 mins away from ohio border)
Posts: 405
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: straight 6 (4.0L)
Senior Member
Join Date: Feb 2013
Location: Kansas City, MO
Posts: 812
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Okay. Hopefull this isn't too long-winded. I posted this question on another thread but I'm looking for more in-depth answers, so I figured a topic-specific thread woudl be better. Okay. So, we were about to replace the spring spacers with 3 inch spacers when we noticed that those springs are tilted. Another CF user said that the axle seems to be tilted. I took another picture of the control arm connected to the drop down bracket. We were told to get an adjustable LCA, but I'm thinking that if we slide that bolt forward and tack weld it, it woudl yeild the same results. I'm not sure what size lift it has for certain cause we bought it this way and I'm not sure where to measure, but it's 4.5 inches from bolt to bolt on to drop down bracket. Remember we're adding the 3 inch spacers too. It does have stock UCA. Do we need to replace the rear LCA as well with extended ones? I hope all that makes sense.
As was recommended, adjustable LCA's would allow you to properly set caster as you continue to make changes to your lift.
CF Veteran
Join Date: Apr 2011
Location: Chickamauga Ga.
Posts: 3,493
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Senior Member
Join Date: Oct 2012
Location: Parlin NJ/Staten Island NY
Posts: 857
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Okay. Hopefull this isn't too long-winded. I posted this question on another thread but I'm looking for more in-depth answers, so I figured a topic-specific thread woudl be better. Okay. So, we were about to replace the spring spacers with 3 inch spacers when we noticed that those springs are tilted. Another CF user said that the axle seems to be tilted. I took another picture of the control arm connected to the drop down bracket. We were told to get an adjustable LCA, but I'm thinking that if we slide that bolt forward and tack weld it, it woudl yeild the same results. I'm not sure what size lift it has for certain cause we bought it this way and I'm not sure where to measure, but it's 4.5 inches from bolt to bolt on to drop down bracket. Remember we're adding the 3 inch spacers too. It does have stock UCA. Do we need to replace the rear LCA as well with extended ones? I hope all that makes sense.
