Sway bar bracket
#1
Sway bar bracket

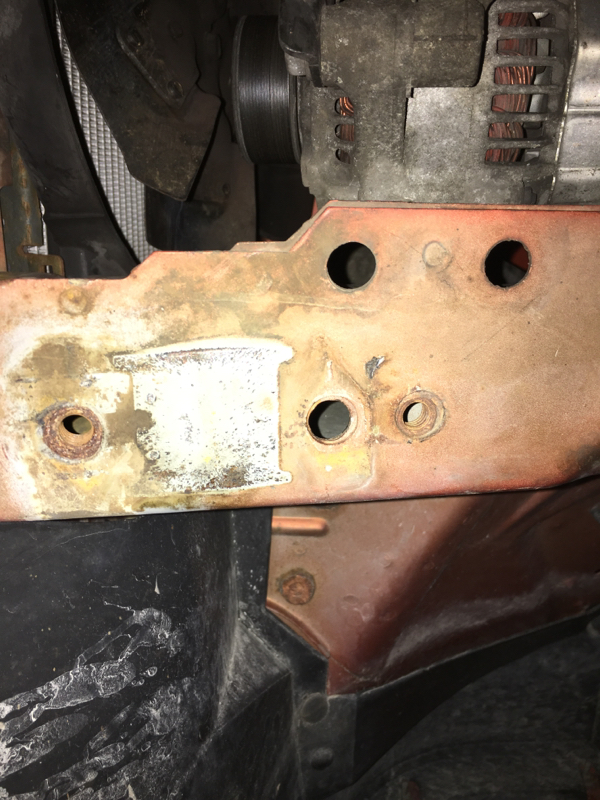

Ok when taking off the drop bracket from rough country to put on Jks quicker disconnects I was attempting to remove the upper bolts of bracket that were bolted into frame with threaded studs in frame I broke off the threaded stud somehow. However there is another one 1" below broken one. What should I do from here. I drive this Jeep everyday on highway so not gonna go without swaybar.
Last edited by cardsfan9; 04-26-2016 at 10:25 AM.
#2
CF Veteran
Join Date: Mar 2010
Location: Georgia
Posts: 1,438
Likes: 0
Received 8 Likes
on
8 Posts
Year: 99 94
Model: Cherokee (XJ)
Engine: I6
You have to take the front bumper off and fish the nut out. Then you can weld a tab to it to catch on the frame then you can put it back.
Or weld the sway bar bracket to the frame. Does not take much to hold it. Then you can cut your weld if you need to.
Or weld the sway bar bracket to the frame. Does not take much to hold it. Then you can cut your weld if you need to.
#3
CF Veteran
Join Date: Jul 2012
Location: Andover, VT
Posts: 3,009
Received 260 Likes
on
198 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
Same bolt is broken on mine. GD PITA. Like he said, take the front bumper off and you can access the inside of the frame rail. I have a bolt dropped through from the top with a nut on the bottom but trying to hold the bolt from the top takes some black magic. Best way is to get a new nut welded back in there but not everybody has that option.
#6
Newbie
Hate to zombie and old thread, but..
Did you ever find our what size hole that third nut is? At this time I have no choice but to use it, or drill my own hole near it.. Frankly not something I'd rather partake in!
Any ideas are greatly appreciated!
#7
CF Veteran
Join Date: Jan 2016
Location: Newport News, VA
Posts: 1,242
Likes: 0
Received 39 Likes
on
38 Posts
Year: 96 & 88 4 dr Cherokees
Could use one of these kits....and trust me, you'll find many other uses for it too......I've used it to mount extra toolboxes to the side of my main box and to mount bumpstops when the factory stuff rusted out. I plan on using it when I redo my roof rack, and when I add fender flares.
https://www.summitracing.com/search/...nut-size/10-24
I'd knock out the old one, put in the correct size nutsert, and re-install the sway bar
.
https://www.summitracing.com/search/...nut-size/10-24
I'd knock out the old one, put in the correct size nutsert, and re-install the sway bar
.
Last edited by TRCM; 05-04-2019 at 08:33 AM.
Trending Topics
#8
Newbie
Could use one of these kits....and trust me, you'll find many other uses for it too......I've used it to mount extra toolboxes to the side of my main box and to mount bumpstops when the factory stuff rusted out. I plan on using it when I redo my roof rack, and when add fender flares.
https://www.summitracing.com/search/...nut-size/10-24
I'd knock out the old one, put in the correct size nutsert, and re-install the sway bar
https://www.summitracing.com/search/...nut-size/10-24
I'd knock out the old one, put in the correct size nutsert, and re-install the sway bar
Thanks for the tip, I tried retrofitting a 3/8-18 bolt but turns out even with this misssized bolt, now the sway bar smacks right up against the power steering box - _-
I've ordered one of Rough Country's Jeep Front Sway-bar Drop Kit | 3-4in Lifts (84-01 Cherokee XJ)
II'll let you guys know how this ends up.. Wish me luck?
