TOTM roll cages
03-06-2012, 10:31 PM
#31
Member
Join Date: Dec 2011
Location: Menifee, CA
Posts: 149
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Last edited by DualPurposeXJ; 03-07-2012 at 09:48 AM.
03-07-2012, 04:13 PM
#33
Seasoned Member
Join Date: Sep 2009
Location: Here, no there, I don't know.
Posts: 432
Likes: 0
Received 2 Likes
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0
I wanted to keep the cross bar spacing more even.
The c pillars are only 2" apart, still good for load path.
The speed I wheel at , and the closest I have come to going over was all pretty low speed.
It was a trade off of mount shoulder staps more horizontal and bump head on roof (sic neck injury) vs steeper angle ((sic possible spine compression)
Since I am not Bajaing at 100 MPH chose the latter and less likely for injury.
Schroth belts have "fuse" that at certain load stiching breaks and belt pays out to absorb energy.
To avoid spinal and soft tissue injury.
The DOT Schroth belts use the rear seat buckle anchor points ~ 45 Deg angle, to the bar is about 70 Deg angle. Not optimuim but again Speed is not a factor.
Harness uses outer and inner mounting points of stock belts, longer bolt and 1/8" mounting plate is mounted under stock belt bracket.
Shoulder belts form Y shape and go to single mount. (usually rear belt buckle) but then no one can sit in rear seat, so I went to bar, strap is between rear seat occupant legs.
Nitro
The c pillars are only 2" apart, still good for load path.
The speed I wheel at , and the closest I have come to going over was all pretty low speed.
It was a trade off of mount shoulder staps more horizontal and bump head on roof (sic neck injury) vs steeper angle ((sic possible spine compression)
Since I am not Bajaing at 100 MPH chose the latter and less likely for injury.
Schroth belts have "fuse" that at certain load stiching breaks and belt pays out to absorb energy.
To avoid spinal and soft tissue injury.
The DOT Schroth belts use the rear seat buckle anchor points ~ 45 Deg angle, to the bar is about 70 Deg angle. Not optimuim but again Speed is not a factor.
Harness uses outer and inner mounting points of stock belts, longer bolt and 1/8" mounting plate is mounted under stock belt bracket.
Shoulder belts form Y shape and go to single mount. (usually rear belt buckle) but then no one can sit in rear seat, so I went to bar, strap is between rear seat occupant legs.
Nitro
Last edited by nitro450exp; 03-07-2012 at 04:18 PM.
03-10-2012, 11:53 PM
#34
Newbie
Join Date: Nov 2011
Location: Gardnerville Nv.
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0

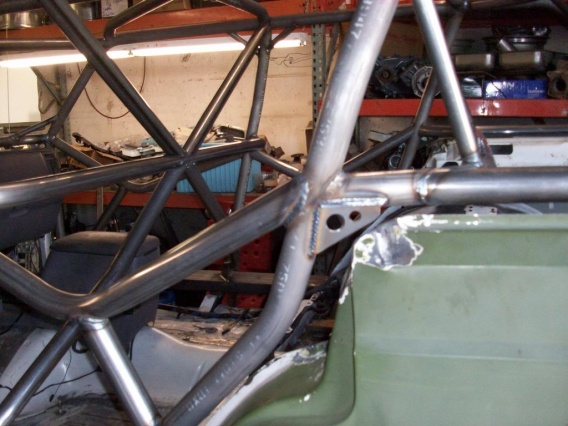

Here is my cage build. It's made of 1.75"x.120 DOM and HREW. The main structure is all DOM and some of the spreaders are HREW (save $$$) I also cut the rockers and boatsided it while I was at it. The cage is 8 point and built off the new rockers. The unibody is plated with 3x4"x.25" angle which is welded and bolted to the "frame". The new boatsides and rockers and built off that with 4-2x2"x.25 square tube supports......I can only post two pics at time so it will take a few
Last edited by rok-jeep; 03-11-2012 at 12:02 AM.
03-11-2012, 01:43 AM
#39
Member
Join Date: Dec 2011
Location: Menifee, CA
Posts: 149
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Cage looks good. How do you like getting in and out with those door bars? Im thinking of building something similar but not sure if i will like having to climb over them
03-11-2012, 01:28 PM
#40
CF Veteran
Join Date: Jan 2009
Location: Utardiland
Posts: 1,703
Likes: 0
Received 0 Likes
on
0 Posts
Year: whats left of a 91
Model: Cherokee
Engine: one that makes noise
Originally Posted by nitro450exp
I wanted to keep the cross bar spacing more even.
The c pillars are only 2" apart, still good for load path.
The speed I wheel at , and the closest I have come to going over was all pretty low speed.
It was a trade off of mount shoulder staps more horizontal and bump head on roof (sic neck injury) vs steeper angle ((sic possible spine compression)
Since I am not Bajaing at 100 MPH chose the latter and less likely for injury.
Schroth belts have "fuse" that at certain load stiching breaks and belt pays out to absorb energy.
To avoid spinal and soft tissue injury.
The DOT Schroth belts use the rear seat buckle anchor points ~ 45 Deg angle, to the bar is about 70 Deg angle. Not optimuim but again Speed is not a factor.
Harness uses outer and inner mounting points of stock belts, longer bolt and 1/8" mounting plate is mounted under stock belt bracket.
Shoulder belts form Y shape and go to single mount. (usually rear belt buckle) but then no one can sit in rear seat, so I went to bar, strap is between rear seat occupant legs.
Nitro
The c pillars are only 2" apart, still good for load path.
The speed I wheel at , and the closest I have come to going over was all pretty low speed.
It was a trade off of mount shoulder staps more horizontal and bump head on roof (sic neck injury) vs steeper angle ((sic possible spine compression)
Since I am not Bajaing at 100 MPH chose the latter and less likely for injury.
Schroth belts have "fuse" that at certain load stiching breaks and belt pays out to absorb energy.
To avoid spinal and soft tissue injury.
The DOT Schroth belts use the rear seat buckle anchor points ~ 45 Deg angle, to the bar is about 70 Deg angle. Not optimuim but again Speed is not a factor.
Harness uses outer and inner mounting points of stock belts, longer bolt and 1/8" mounting plate is mounted under stock belt bracket.
Shoulder belts form Y shape and go to single mount. (usually rear belt buckle) but then no one can sit in rear seat, so I went to bar, strap is between rear seat occupant legs.
Nitro
03-11-2012, 10:57 PM
#41
Newbie
Join Date: Nov 2011
Location: Gardnerville Nv.
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
They make great arm rests when driving.
03-12-2012, 11:17 PM
#43
Newbie
Join Date: Nov 2011
Location: Gardnerville Nv.
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Yeah I have two. Here are the links. There are also a bunch of pics in my jeep album under my avatar.
This is from when I first built the jeep 6+ years ago. It starts out with my first Ford radius arm design and axle, then progresses to my new front axle and suspension design. Its an R.E. style radius arm on the driver side with one long lower on the passenger side. Lots to read and lots of pics here.
http://www.pirate4x4.com/forum/showt...4394&highlight=
This thread is for the cage design/boatsides.
http://www.pirate4x4.com/forum/showt...3563&highlight=
Hit me up if you have any questions.
Geoff
This is from when I first built the jeep 6+ years ago. It starts out with my first Ford radius arm design and axle, then progresses to my new front axle and suspension design. Its an R.E. style radius arm on the driver side with one long lower on the passenger side. Lots to read and lots of pics here.
http://www.pirate4x4.com/forum/showt...4394&highlight=
This thread is for the cage design/boatsides.
http://www.pirate4x4.com/forum/showt...3563&highlight=
Hit me up if you have any questions.
Geoff
03-13-2012, 10:28 AM
#44
CF Veteran
Join Date: Jan 2011
Location: Littleton, CO
Posts: 2,765
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 2001 4.0L
Here is my latest cage build for those of you who have not seen it.
Here is a link to the build thread https://www.cherokeeforum.com/f58/hu...-build-121277/
Here is a link to the build thread https://www.cherokeeforum.com/f58/hu...-build-121277/
